3″ (75mm) Dedeco Sunburst TC 3-Ply Radial Disc Assortment – 8-Wheel Kit
Price range: £89.66 through £189.88 inc VAT
Compare all eight Dedeco Sunburst 3″ TC grades in one consistent, pre-assembled 3-ply wheel format.
- Wheel diameter: 3″ (75mm)
- Bristle profile: Flexible, curved Dedeco TC bristles, equivalent to Type C terminology
- Kit contents: Eight pre-assembled 3-ply radial wheels – one in each colour-coded grade
- Grade range: 36, 50, 80, 120, 220 and 400 grit, plus 6 micron and 1 micron
- Abrasive grain: Aluminium oxide throughout the complete assortment
- Working width: Approximately 1/8″ (3.2mm) per 3-ply wheel
- Recommended mounting: MM17 or MM32 tapered mandrel; PB39 and PB38 are also compatible
- Mandrel included: No
- Operating speed: 3,000–18,000 RPM recommended
Ideal for comparing a complete cleaning-to-polishing grade progression while maintaining the same wheel diameter, construction and working width.
Moleroda Product Code: DED-3-TCRADIAL-ASSORTMENTS
Compare Eight 3-inch TC Grades in a Consistent 3-Ply Format

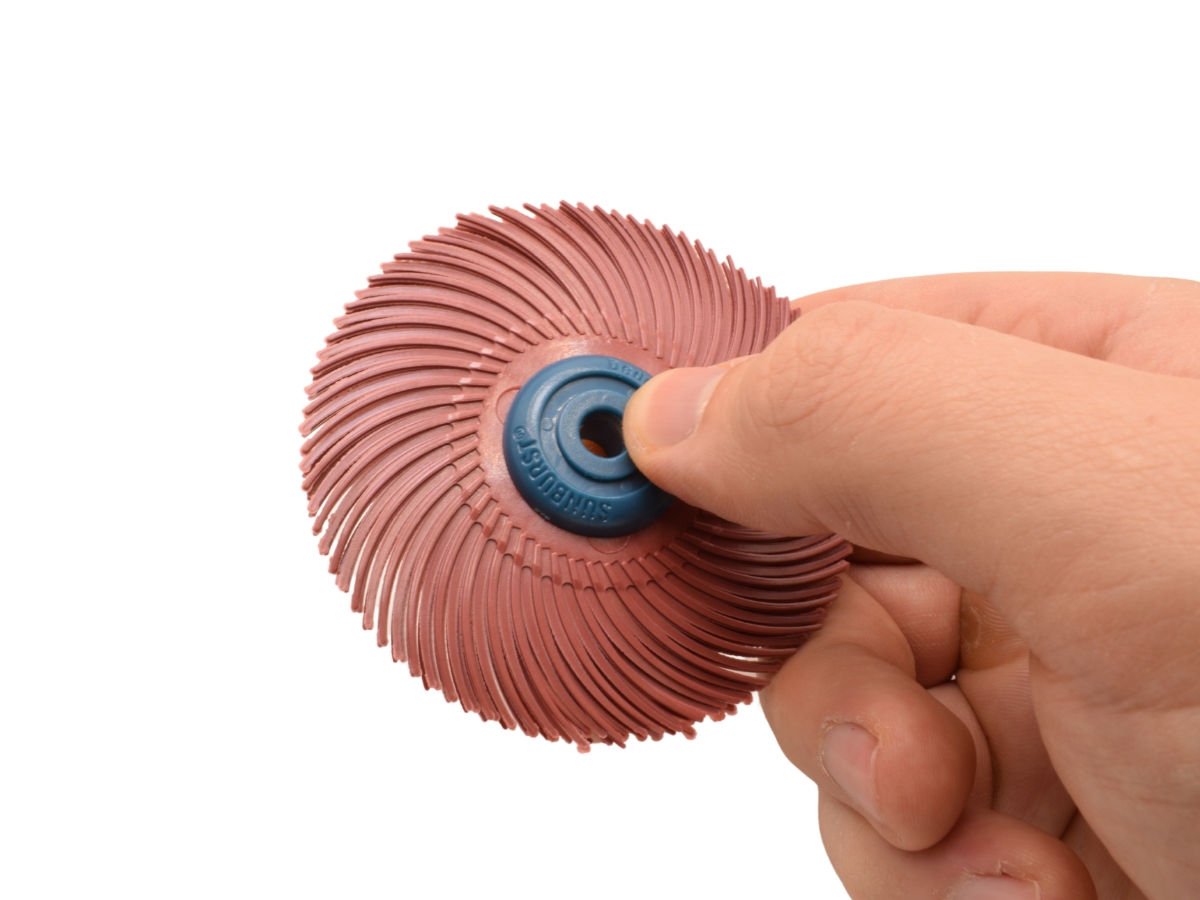

The Dedeco Sunburst 3″ TC 3-ply radial disc assortment provides one pre-assembled wheel in each of eight grades, covering aggressive cleaning and surface preparation through to fine polishing.
Each wheel combines three matching radial disc layers into an approximately 1/8″ (3.2mm) working face. This provides greater support and surface coverage than a loose disc while retaining the flexibility needed to follow contours, edges and irregular surfaces.
The curved TC bristles—equivalent to Type C terminology—contain aluminium oxide abrasive throughout their moulded polymer construction. This allows the wheels to maintain their cutting action as they wear without requiring a separate polishing compound.
Already know the grade you need?
The individual-grade page offers loose 3″ TC discs for configurable working widths and wider pre-assembled 6-ply wheels.
Compare Eight Grades
Trial every grade from ultra-coarse 36 grit through to ultra-fine 1 micron to identify an effective starting point and finishing sequence.
Consistent 3-Ply Format
Every grade is supplied in the same pre-assembled three-layer format, supporting meaningful comparisons of cutting action and resulting finish.
Controlled Larger-Format Finishing
The 3″ diameter provides increased surface coverage while retaining the conformability needed to follow curved, profiled and irregular components.
3-Ply or 6-Ply Assortment – or Individual Grades?
Choose this 3″ x 3-ply assortment for a relatively narrow, conformable working face that combines controlled contact with enough support for broader general finishing.
Choose the 3″ x 6-ply assortment when you want to compare the same complete grade range using a wider and more supported working face with greater surface contact.
Once you have identified the required grades, choose individual loose discs to configure your own working width or individual 6-ply assemblies for a ready-assembled wider wheel.
Shop Individual 3-inch TC GradesTypical Applications
- Comparing abrasive grades using a consistent 3-ply working width
- Developing repeatable cleaning, deburring and finishing sequences
- Removing rust, oxidation, tarnish and surface contamination
- Cleaning suitable coatings, adhesive residue and discolouration
- Deburring and blending edges, profiles and machined features
- Blending scratches, machining marks and surface transitions
- Refining cast, fabricated and machined components
- Finishing broader surfaces and larger components
- Generating or refining decorative grain patterns
- Progressing from initial surface preparation through to fine polishing
Suitable Materials
These wheels are suitable for finishing aluminium, brass, bronze, carbon steel, cast iron, stainless steel, precious metals and other appropriate metals. They may also be used for selected wood, acrylic and plastic applications.
Always test the selected grade on an inconspicuous area first, particularly on softer, coated or heat-sensitive materials.

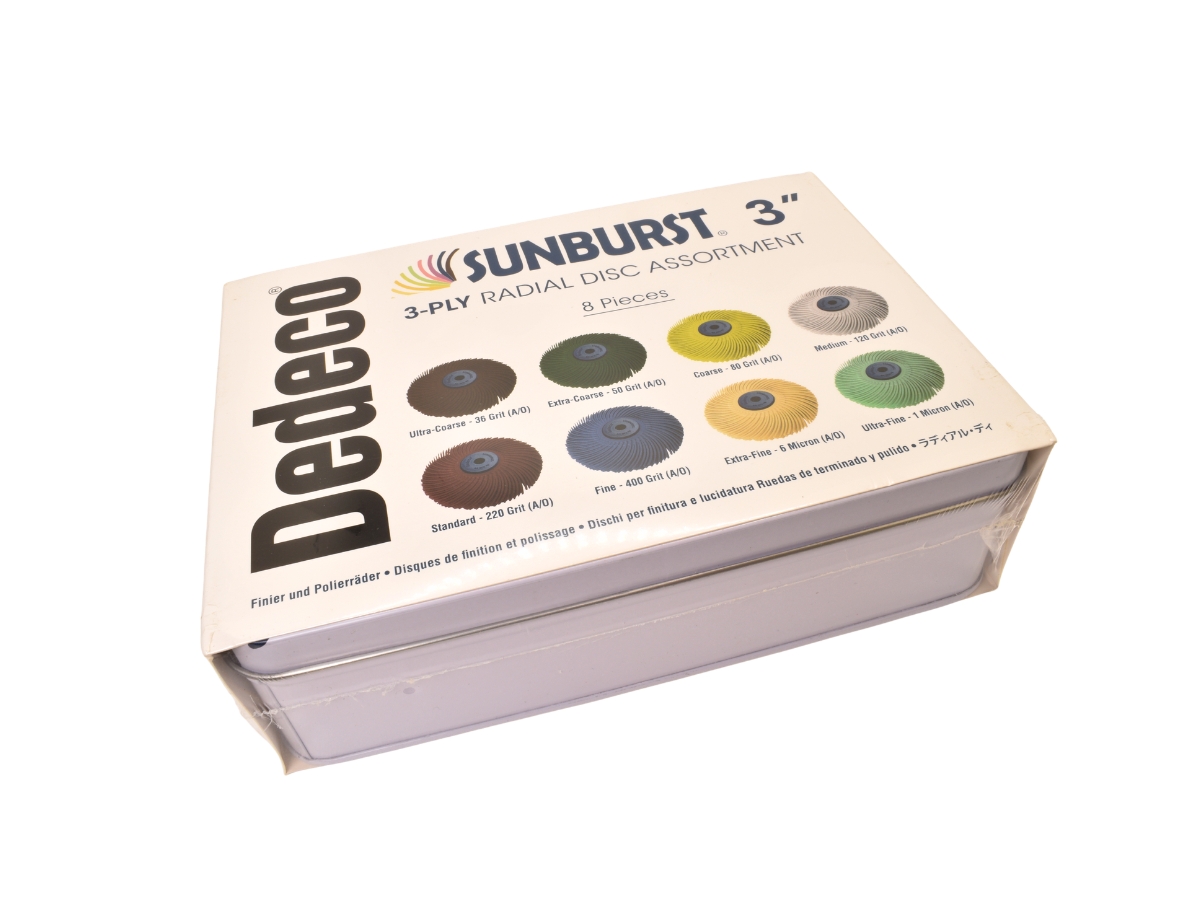

Assortment Contents & Grades
What's Included

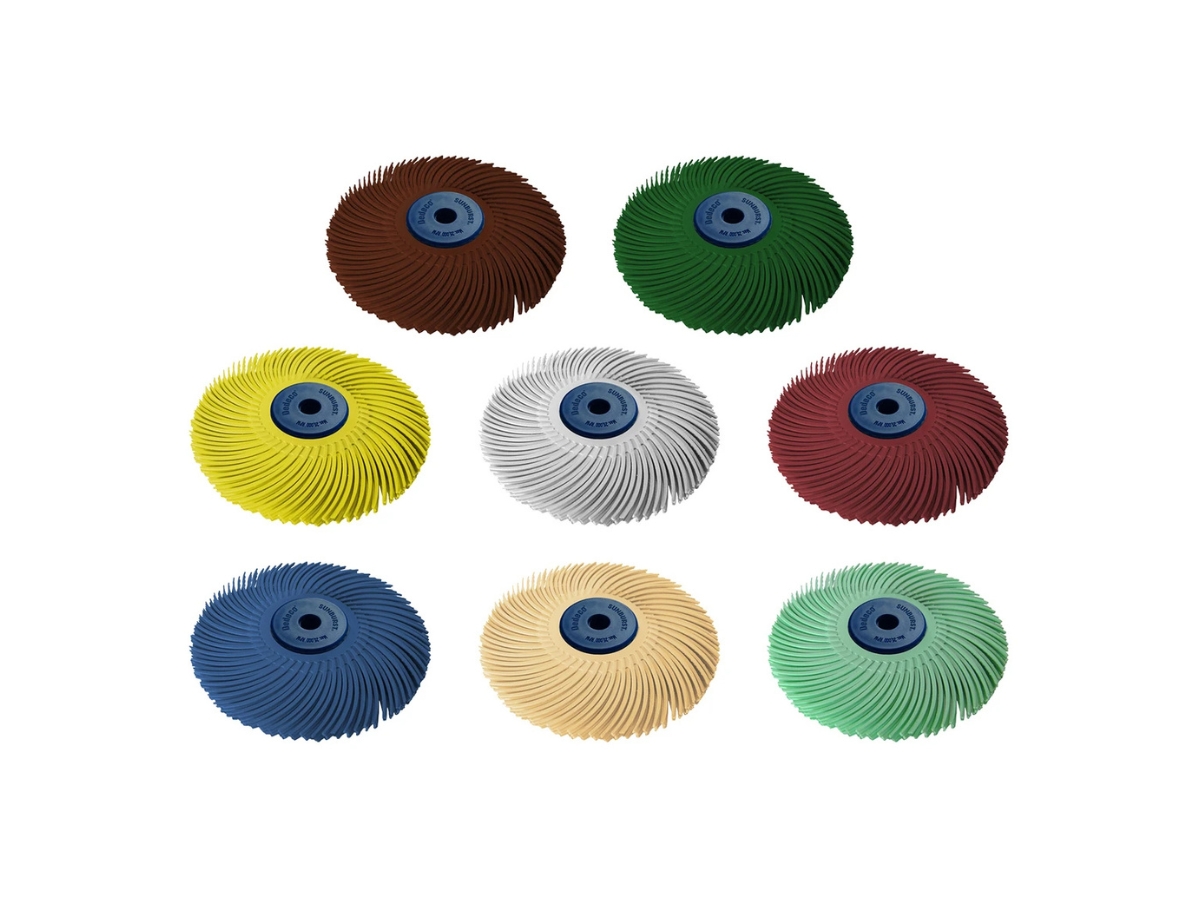

- Eight pre-assembled 3-ply radial wheels: One wheel in each colour-coded grade
- Eight aluminium-oxide grades: 36, 50, 80, 120, 220 and 400 grit, plus 6 micron and 1 micron
- Nominal wheel size: 3″ diameter with an approximately 1/8″ assembled working width
- Centre hole: 1/4″ (approximately 6.35mm)
- Mandrel: Not included; a suitable tapered mandrel or polishing-lathe spindle is required

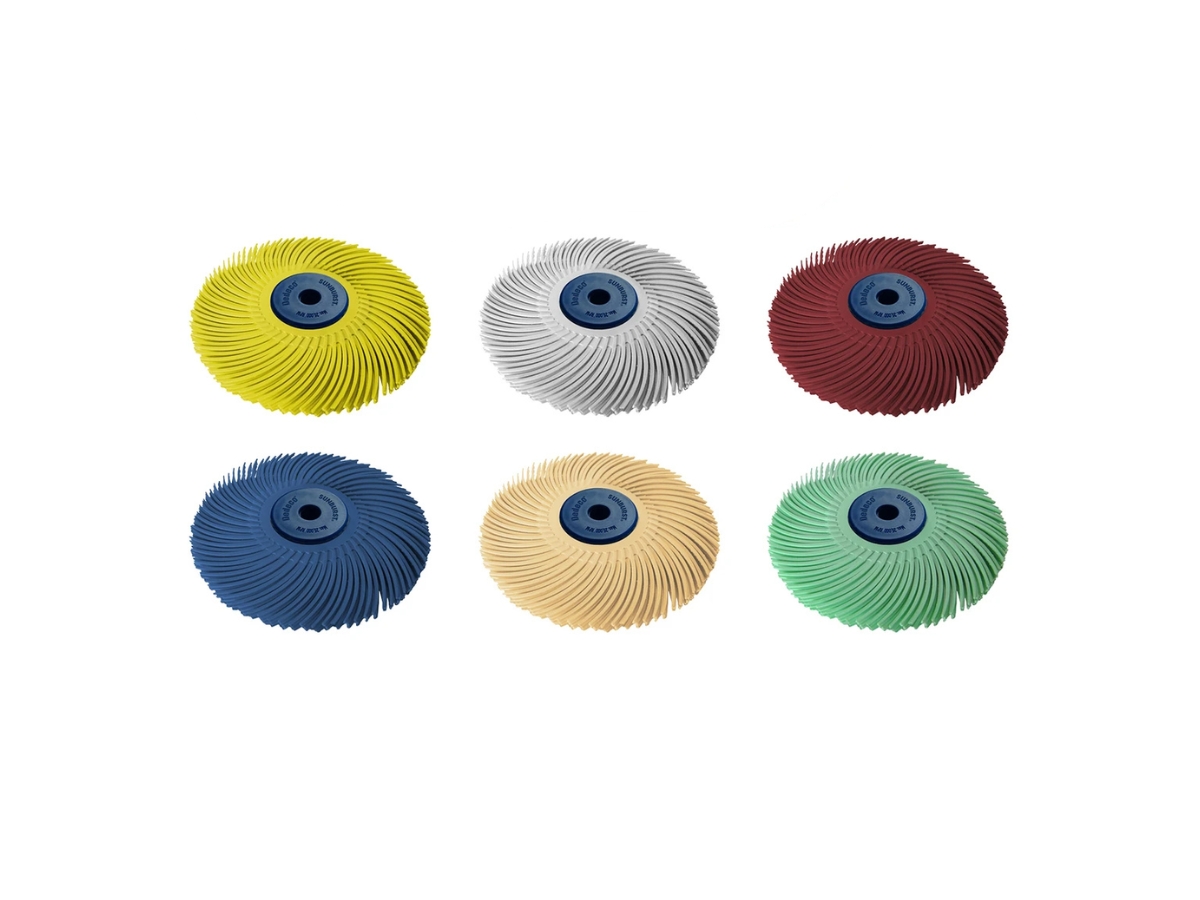

Legacy Six-Wheel Option
Legacy option: A six-wheel assortment is also available with 80, 120, 220 and 400 grit wheels, plus 6 micron and 1 micron. It excludes the brown 36-grit and dark green 50-grit grades.
Grade Selection
The table provides the complete contents of the eight-grade assortment. One pre-assembled 3-ply wheel is supplied in every listed grade.
| Colour | Grade | Quantity | Typical Use |
|---|---|---|---|

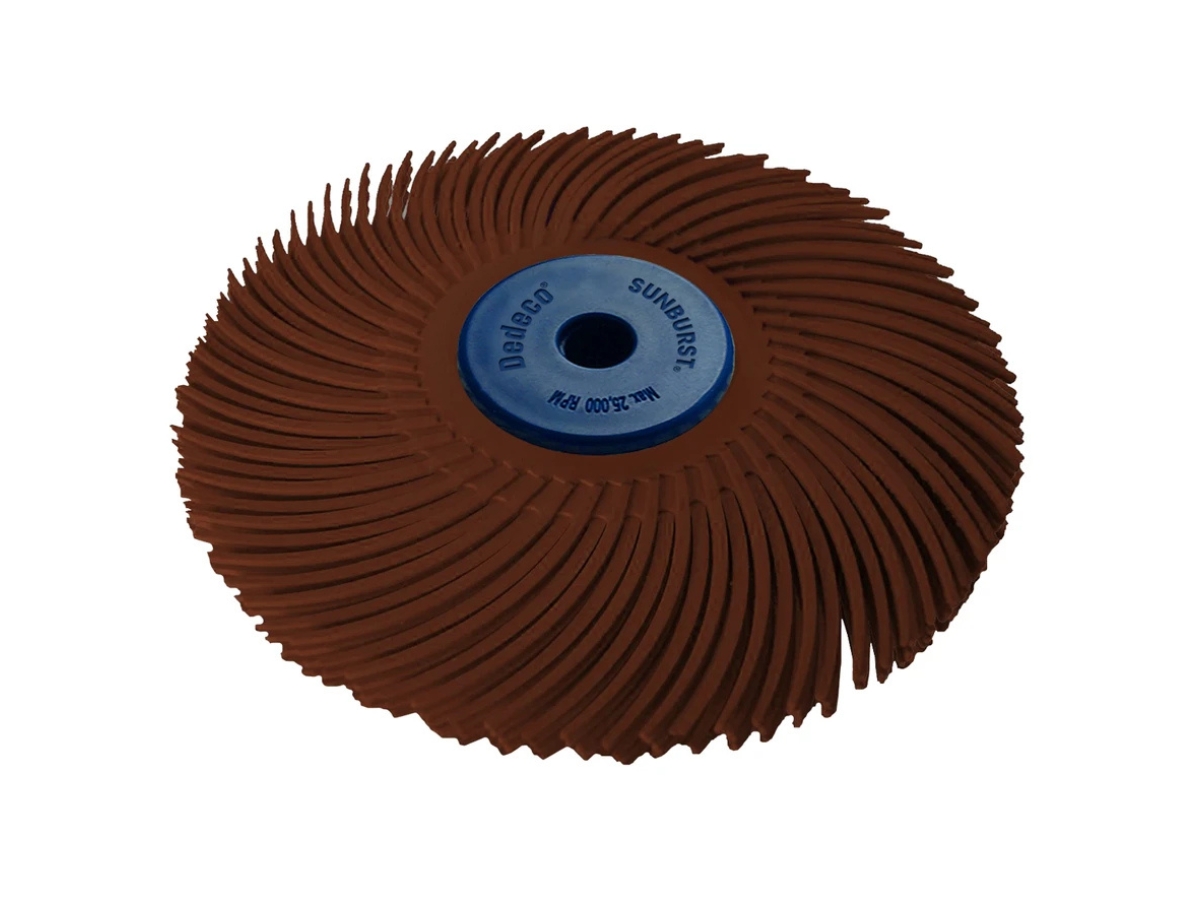

| Brown (Ultra-Coarse) |
36 Grit (Aluminium Oxide) |
1 x 3-ply wheel | Aggressive stripping, heavy corrosion removal and initial surface correction |

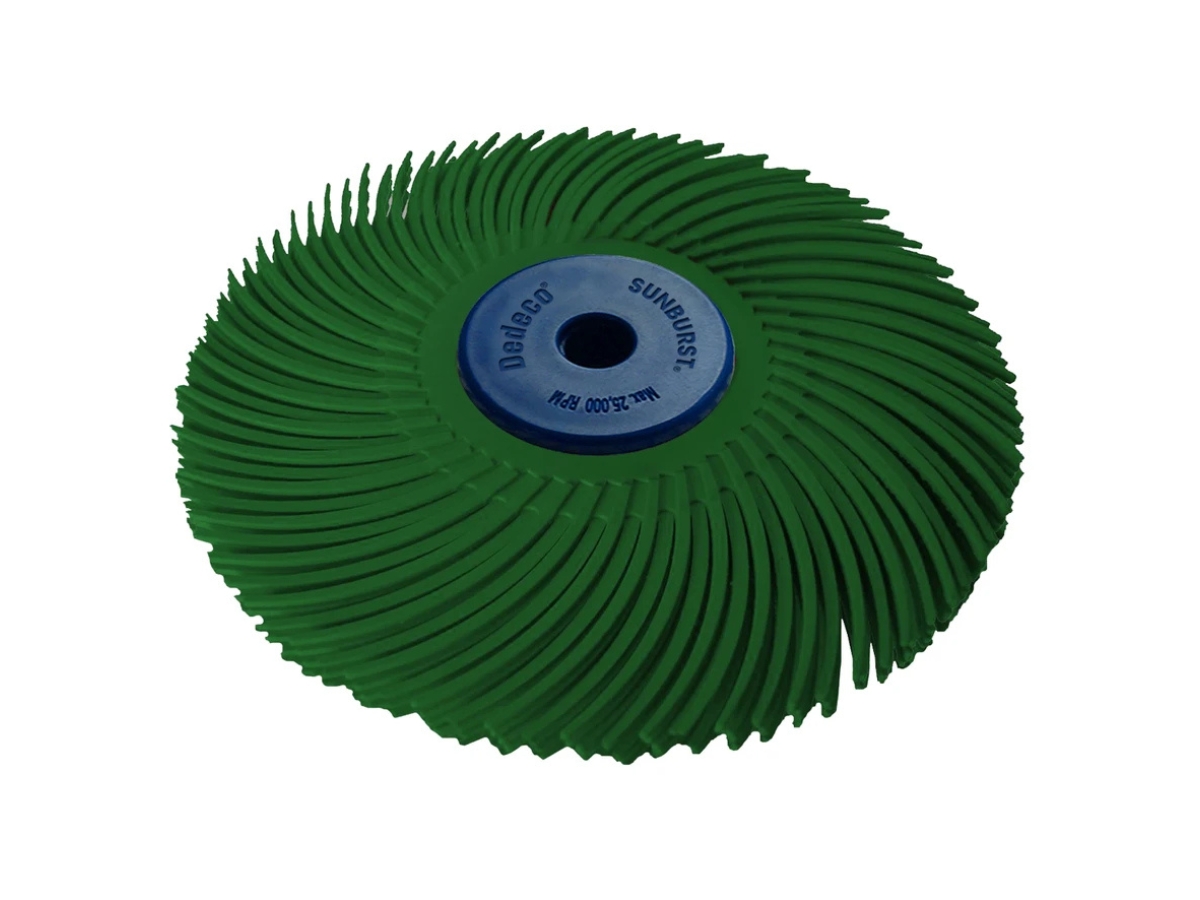

| Dark Green (Extra-Coarse) |
50 Grit (Aluminium Oxide) |
1 x 3-ply wheel | Heavy deburring, weld clean-up and rapid surface preparation |
| Yellow (Coarse) |
80 Grit (Aluminium Oxide) |
1 x 3-ply wheel | Heavy cleaning, oxide removal, deburring and coarse blending |

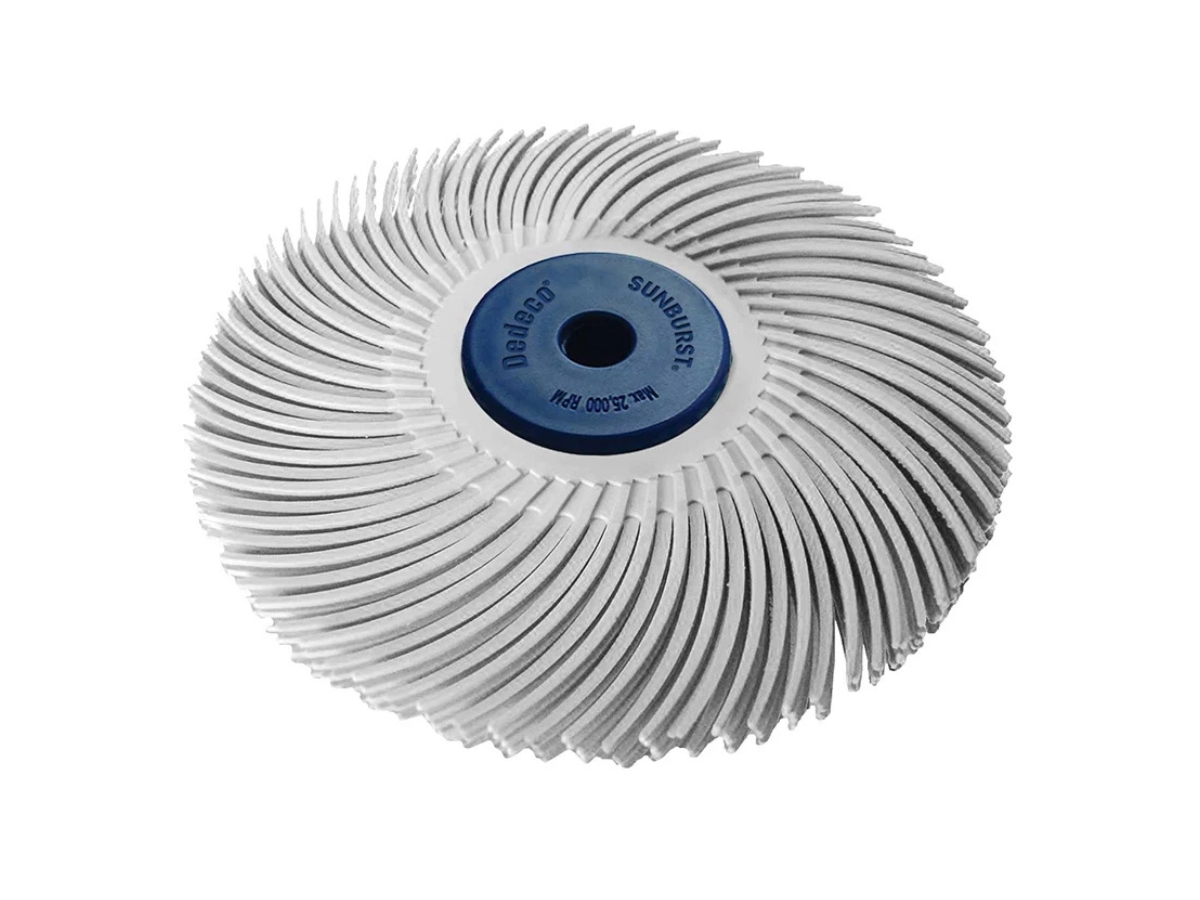

| White (Medium) |
120 Grit (Aluminium Oxide) |
1 x 3-ply wheel | Controlled deburring, smoothing and intermediate blending |

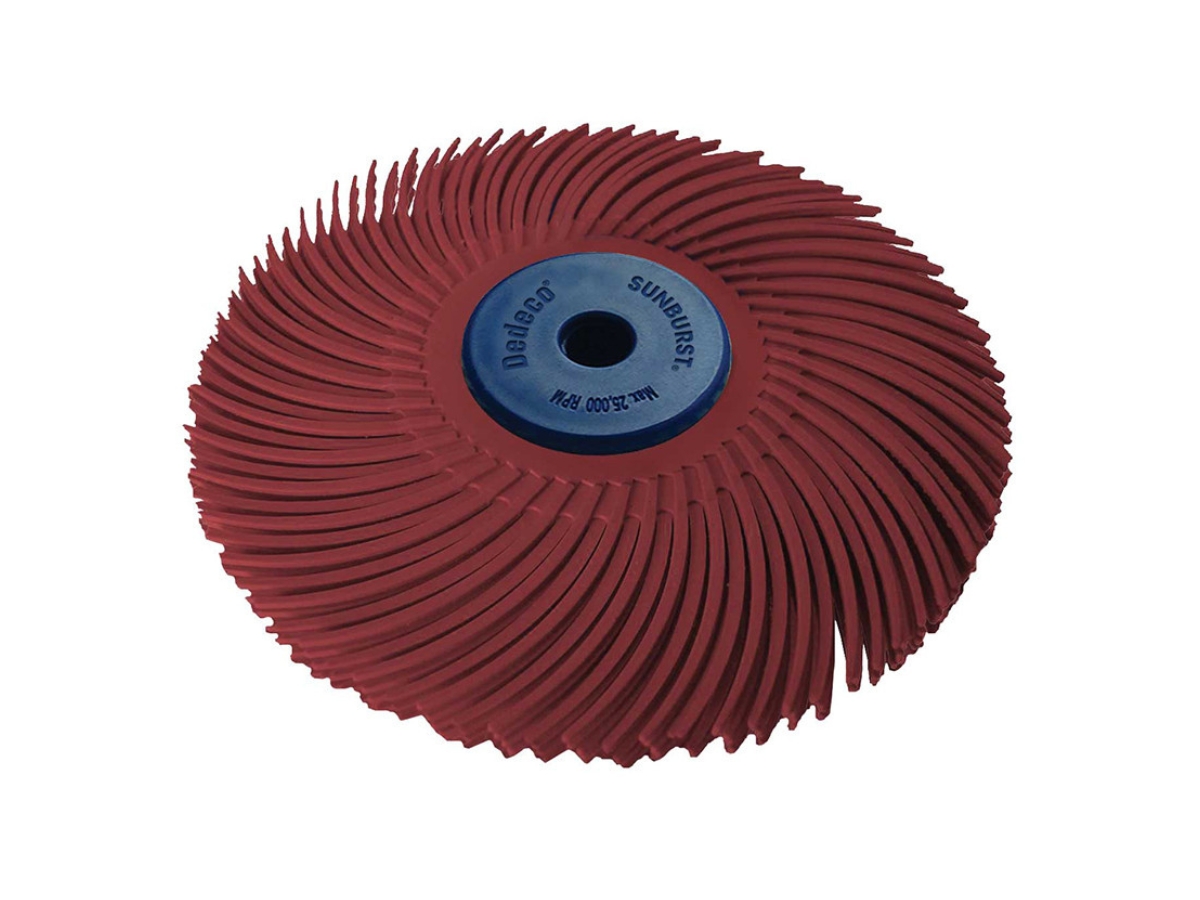

| Red (Standard) |
220 Grit (Aluminium Oxide) |
1 x 3-ply wheel | Surface blending, scratch refinement and preparation for finer finishing |

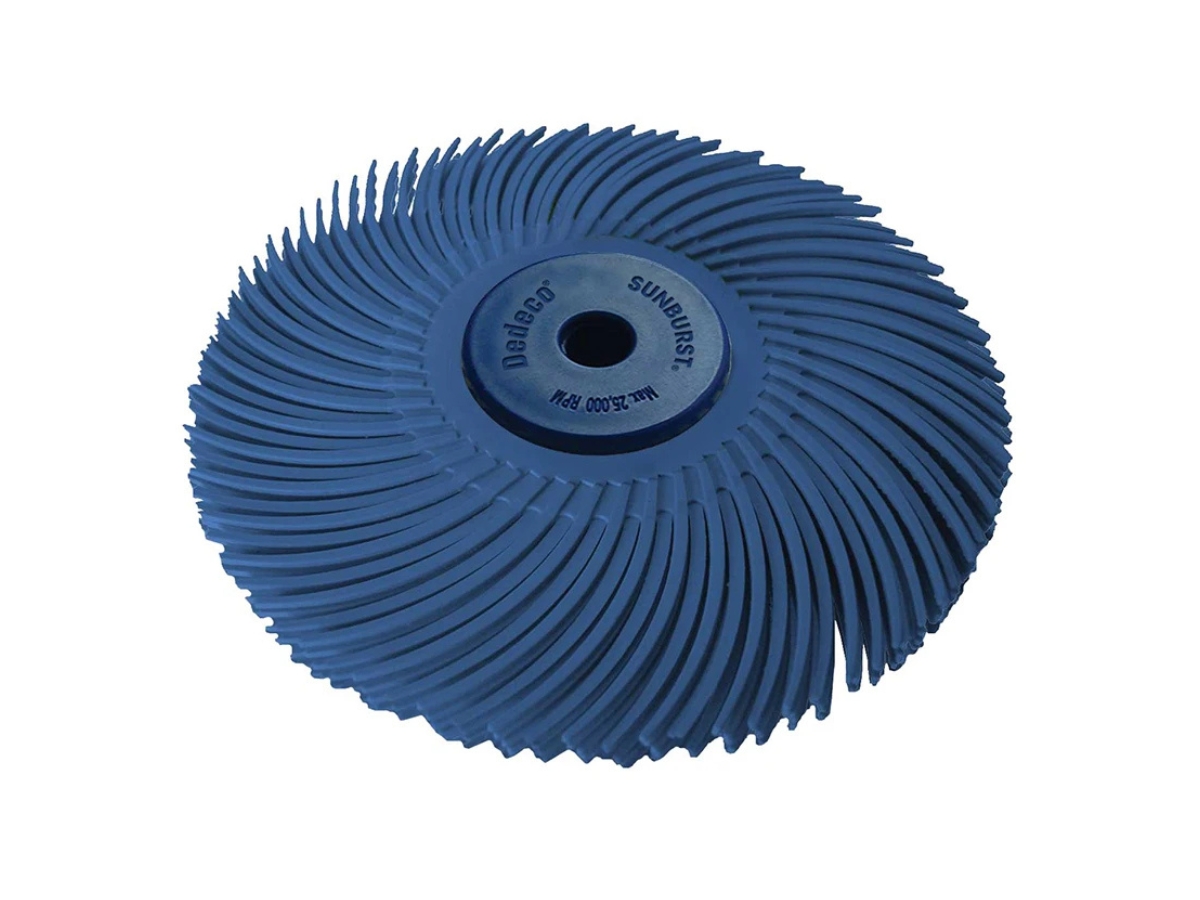

| Blue (Fine) |
400 Grit (Aluminium Oxide) |
1 x 3-ply wheel | Fine finishing, satin finishing and surface smoothing |
| Peach (Extra-Fine) |
6 Micron (Aluminium Oxide) |
1 x 3-ply wheel | Fine polishing and development of an initial lustre |

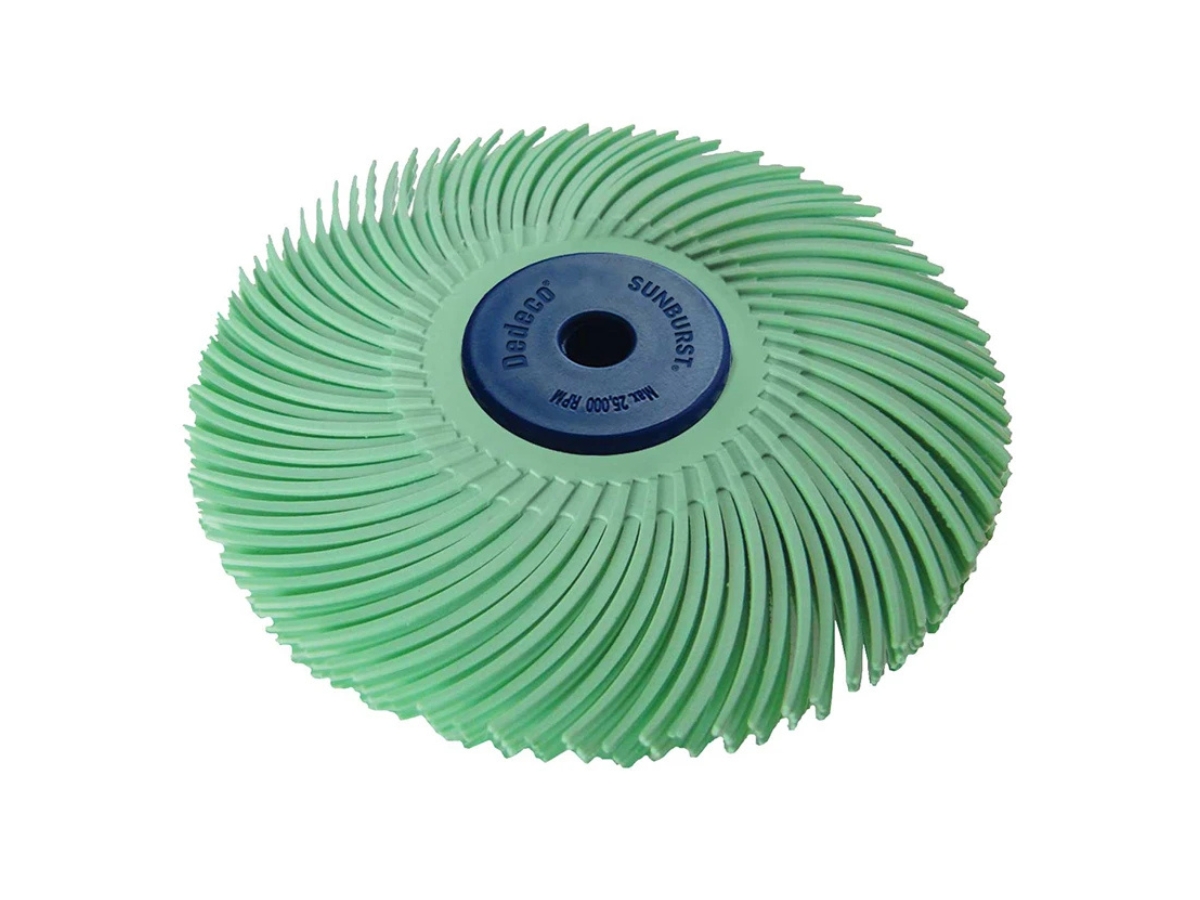

| Light Green (Ultra-Fine) |
1 Micron (Aluminium Oxide) |
1 x 3-ply wheel | Final high-lustre and highly refined finishing |

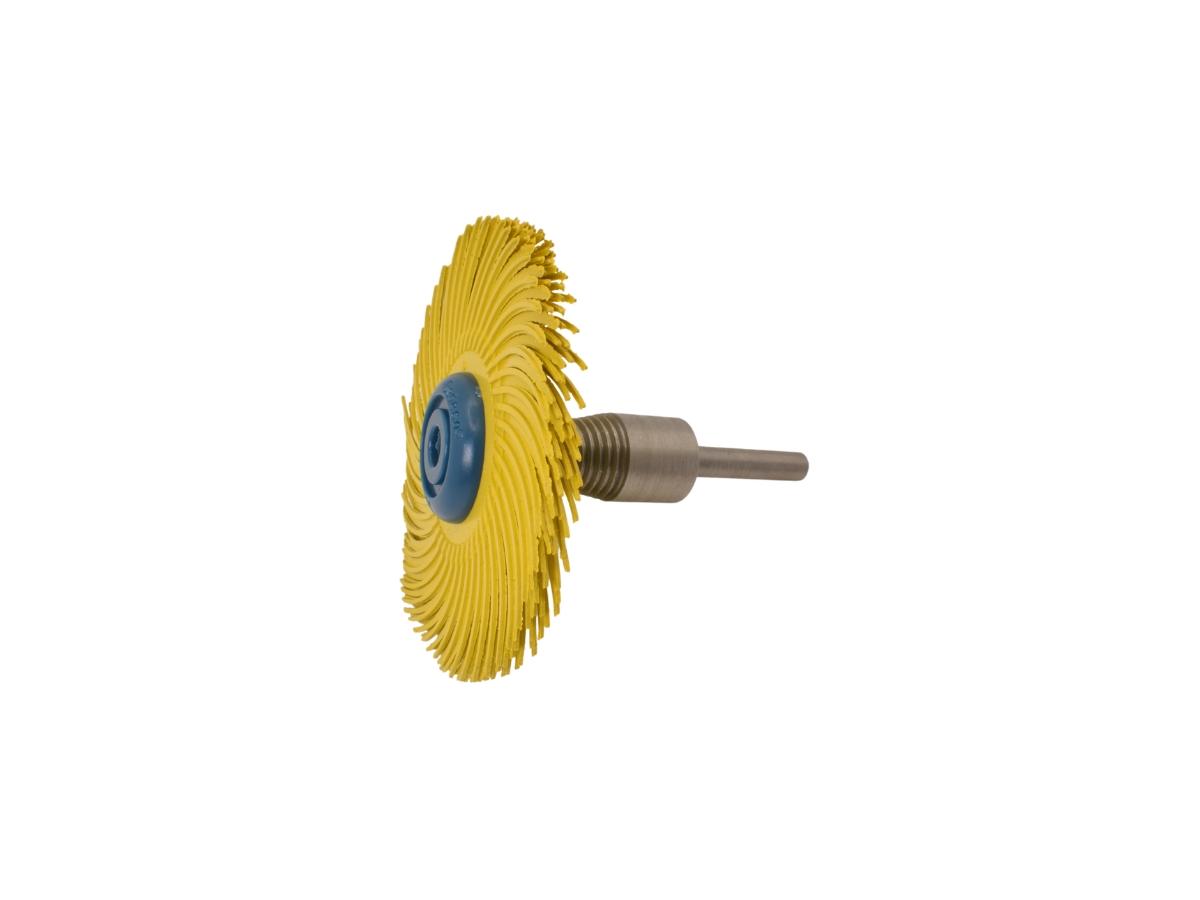

Recommended Tapered Mandrels
All four Moleroda tapered mandrels with a 6mm shank can safely be used with these 3″ radial wheel assemblies.
- MM17 and MM32: Moleroda’s primary tapered-mandrel recommendations for 3″ radial wheel assemblies
- PB39: Regular tapered mandrel that is also compatible with the 3″ assemblies
- PB38: Extended tapered mandrel for applications requiring additional reach
- All four options have a 6mm shank for a compatible chuck or collet
- Wind the wheel fully and securely onto the taper before starting the machine
Bench-Lathe Use
The 3″ wheels are suitable for variable-speed polishing lathes such as the Foredom M.BL.
- Use the appropriate tapered spindle or compatible chuck-mounted taper
- Confirm the correct spindle hand and direction of rotation
- Ensure the wheel tightens onto the taper during operation
- Operate within the overlapping speed range of the wheel and machine
- Use suitable guarding and extraction for the application
Operating & Safety Guidance
- Recommended operating range: 3,000–18,000 RPM.
- Woodworking reference speed: Approximately 5,000 RPM.
- Maximum wheel speed: 25,000 RPM.
- Never exceed the lowest maximum speed specified for the wheel, mandrel or machine.
- Confirm that the wheel is fully wound onto the taper and runs true before use
- Install the wheel so the curved bristles follow the correct direction of rotation
- Start at a lower speed and increase only where greater cutting action is required
- Use the bristle tips with light pressure rather than forcing the wheel into the workpiece
- Keep the wheel moving to control localised heat and uneven wear
- Inspect the wheel and mounting system before every use
- Use suitable machine guarding, extraction and appropriate personal protective equipment
Product Specifications
| Product range | Dedeco Sunburst |
|---|---|
| Nominal diameter | 3″ (75mm) |
| Wheel construction | Pre-assembled 3-ply radial wheel |
| Approximate working width | 1/8″ (3.2mm) |
| Disc profile | Standard-profile TC curved and conformable (Type C) |
| Bristle characteristics | Flexible and single-directional |
| Abrasive grain | Aluminium oxide |
| Included grades | 36, 50, 80, 120, 220 and 400 grit, plus 6 micron and 1 micron |
| Supply format | Pre-assembled 3-ply radial wheel assortment kit |
| Pack contents | Eight 3-ply wheels – one in each grade |
| Centre hole | 1/4″ (approximately 6.35mm) |
| Mandrel included | No |
| Recommended mounting | Suitable tapered mandrel or polishing-lathe spindle |
| Compatible portable mandrels | MM17, MM32, PB39 and PB38, all with a 6mm shank |
| Primary 3″ mandrel recommendations | MM17 or MM32 |
| Recommended operating range | 3,000–18,000 RPM |
| Woodworking reference speed | Approximately 5,000 RPM |
| Maximum wheel speed | 25,000 RPM |
| Suitable materials | Metal, wood and selected plastics |
| Suitable equipment | Variable-speed polishing lathes and compatible rotary tools fitted with an appropriate tapered spindle or mandrel |
| Polishing compound required | No |
Complete Your Radial Finishing Setup
Choose a Tapered Mandrel
Select MM17 or MM32 as the primary 3″ options. PB39 and the extended PB38 are also compatible where their format better suits the application.
Use with a Compact Bench Lathe
The variable-speed Foredom M.BL provides a compact stationary setup for jewellery, precision and small-component finishing.
Continue with Individual Grades
Choose individual 3″ x 6-ply assemblies for a wider ready-assembled format, or loose 3″ discs when you want to configure the working width yourself.
| Weight | 0.5 kg |
|---|---|
| Model Number | 2370, 1330 |
| Disc Size / Diameter | 75mm / 3" |
| Arbor (Centre Hole) | 6.35mm / 1/4" |
| Disc Type | Standard |
| Bristle Type | Curved – TC / Type C |
| Supply Format | Pre-Assembled 3-Ply Radial Wheel Assortment Kit |
| Pack Size | 8 x 3-Ply Wheel Assemblies, 6 x 3-Ply Wheel Assemblies |
| Wheel Quantity | 8, 6 |
| Disc Layers per Wheel | 3 |
| Working Width | 3.2mm / 1/8" |
| Mandrel Included | No |
| Recommended Mandrel | MM17 Small Heavy-Duty Tapered Mandrel, MM32 Large Heavy-Duty Tapered Mandrel, PB39 Regular Tapered Mandrel, PB38 Extended Tapered Mandrel, Suitable Polishing-Lathe Taper |
| Recommended Operating Speed | 3,000 – 18,000 RPM |
| Maximum Speed | 25,000 RPM |
| Grit / Grade | 36 Grit – Ultra-Coarse (Brown), 50 Grit – Extra-Coarse (Dark Green), 80 Grit – Coarse (Yellow), 120 Grit – Medium (White), 220 Grit – Standard (Red), 400 Grit – Fine (Blue), 6 Micron – Extra-Fine (Peach), 1 Micron – Ultra-Fine (Light Green) |
| Abrasive Grain | Aluminium Oxide |
| For use on | Metal, Wood, Plastic |
| Tool | Bench Motor, Polishing Lathe, Standard Drill, Die Grinder, Straight Grinder |
