6″ (150mm) Dedeco Sunburst TC Radial Discs – Loose Discs & 8-Lap Wheel Assemblies

Price range: £10.00 through £89.05

Large-format Dedeco Sunburst TC radial bristle discs for controlled cleaning, deburring, blending, finishing and polishing across contours, profiles and larger components.

Bristle profile: Dedeco TC curved bristles, equivalent to 3M Type C terminology, for controlled and conformable finishing
Loose-disc format: Individual 6″ disc with a 2″ centre hole; compatible flange and adapter system required and sold separately
Wheel assembly: Eight matching TC discs pre-assembled into an approximately 1/2″-wide wheel, complete with reusable flange and telescopic adapter
Grades: 36, 50, 80, 120, 220 and 400 grit, plus 6 micron and 1 micron aluminium oxide
Operating speed: 1,500–4,000 RPM recommended; 6,000 RPM maximum

Choose a loose disc when replacing worn discs or configuring a wheel with an existing mounting system.

Choose the eight-lap assembly for a complete, ready-mounted production wheel.

Moleroda Product Code: DEDTC150MM

Supply Format

Grit / Grade

Clear

SKU: DEDTC150MM Categories: Abrasive Wheels, Abrasives for Power Tools, Dedeco Sunburst Radial Discs, Large Radial Discs & Wheels, Unmounted Abrasive Mops & Wheels Tags: 3D Printed & AM Tech, Abrasive, Deburring, Jewellery, Machine Driven Accessories, Mould Tools, Plastics & Non Metals, Polishing, Precision Engineering

Description
Additional information

Large-Format TC Radial Finishing in Loose and Ready-Mounted Formats

Dedeco Sunburst 6″ TC radial bristle discs provide a flexible, controlled finishing action for cleaning, deburring, blending and polishing larger components. Abrasive is distributed throughout the moulded polymer bristles, allowing fresh cutting points to remain available as the bristle tips wear.

The thin, curved TC bristles provide greater conformity than Dedeco’s firmer, angled TA construction. They follow contours, profiles, edges and irregular surfaces with less manipulation while remaining suitable for broad surface finishing.

Choose between a single loose disc for replacement or configurable wheel building and a complete eight-lap wheel assembly for a defined working width with the mounting components included.

Why Choose TC Bristles?

Flexible Contour Conformity

Dedeco TC bristles—also described as Type C in comparable radial bristle systems—use a curved and flexible construction. This allows the bristles to follow contours and detailed surfaces while providing controlled cleaning, blending and finishing.

Controlled Surface Contact

The moulded abrasive bristles clean, deburr and refine the surface without the loose wire filaments associated with wire wheels. The open bristle structure also helps control loading and localised heat when used with light pressure.

Coarse-to-Fine Finishing

The broad TC grade range supports workflows from aggressive cleaning and deburring through blending, satin finishing and fine polishing without requiring a separate polishing compound.

TC or TA: Which Bristle Type Should You Choose?

TC bristles are suited to controlled finishing around contours, profiles and irregular components. Where firmer contact and more aggressive cutting are required across flatter or readily accessible surfaces, consider the angled Dedeco TA range.

Compare with the 6-inch Dedeco Sunburst TA Radial Disc Range

Typical Applications

Removing rust, oxidation, weld discolouration and surface contamination
Removing suitable paint, coatings and adhesive residues with the coarser grades
Light deburring around accessible edges, threads, profiles and machined features
Blending machining marks, scratch patterns and transitions between worked areas
Following contours on machined parts, turbine components and irregular fabrications
Producing controlled satin, smooth and refined surface finishes
Progressing through fine grades for pre-polishing and high-lustre finishing
Finishing larger components where smaller radial discs provide insufficient coverage

Suitable Materials

These TC discs are suitable for use across metals including carbon steel, stainless steel, cast iron, aluminium, brass and bronze. They can also be used for suitable wood and plastic applications where their flexible, compound-free finishing action is appropriate.

Always test the selected grade on an inconspicuous area first, particularly on softer, coated or heat-sensitive materials. Begin with the finest grade capable of producing the required result.

Choose Loose Discs or an 8-Lap Wheel Assembly

Single Loose Disc

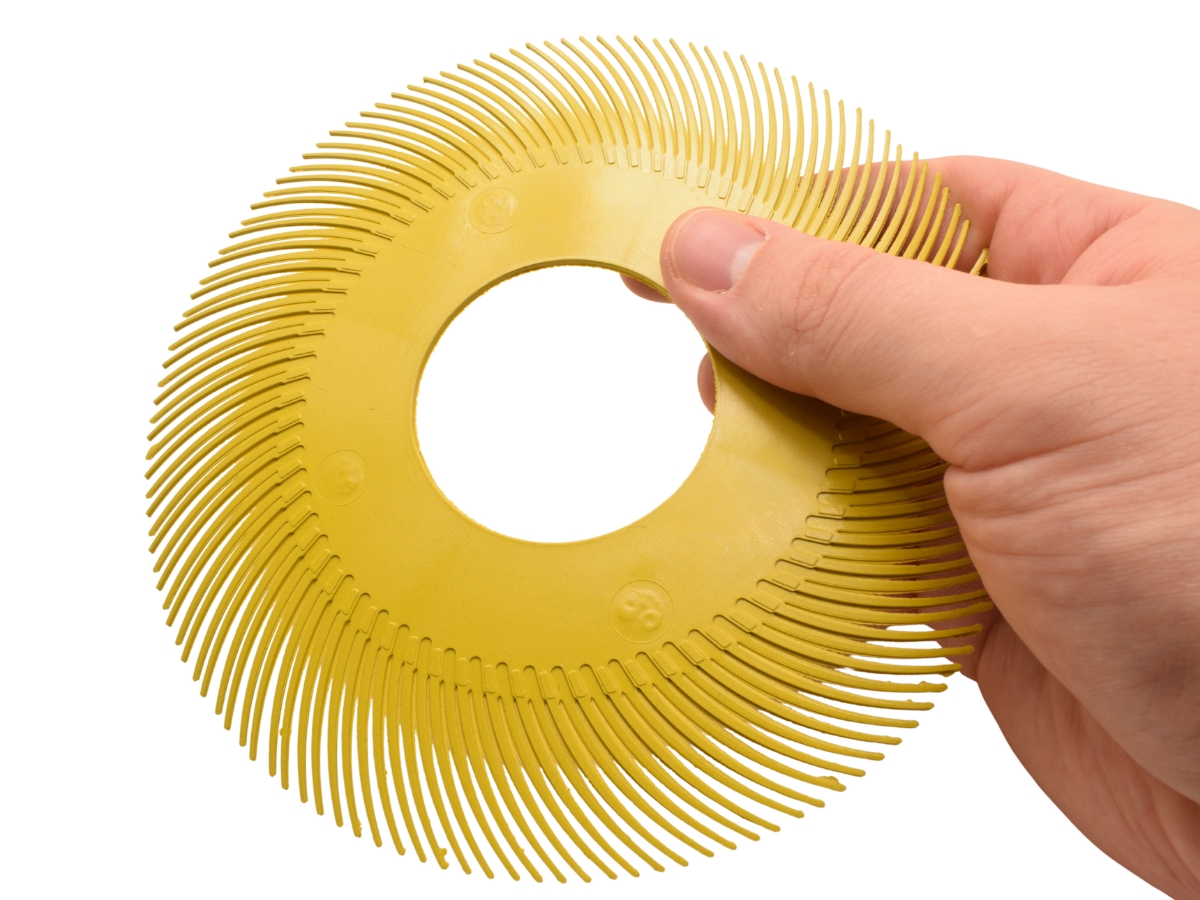

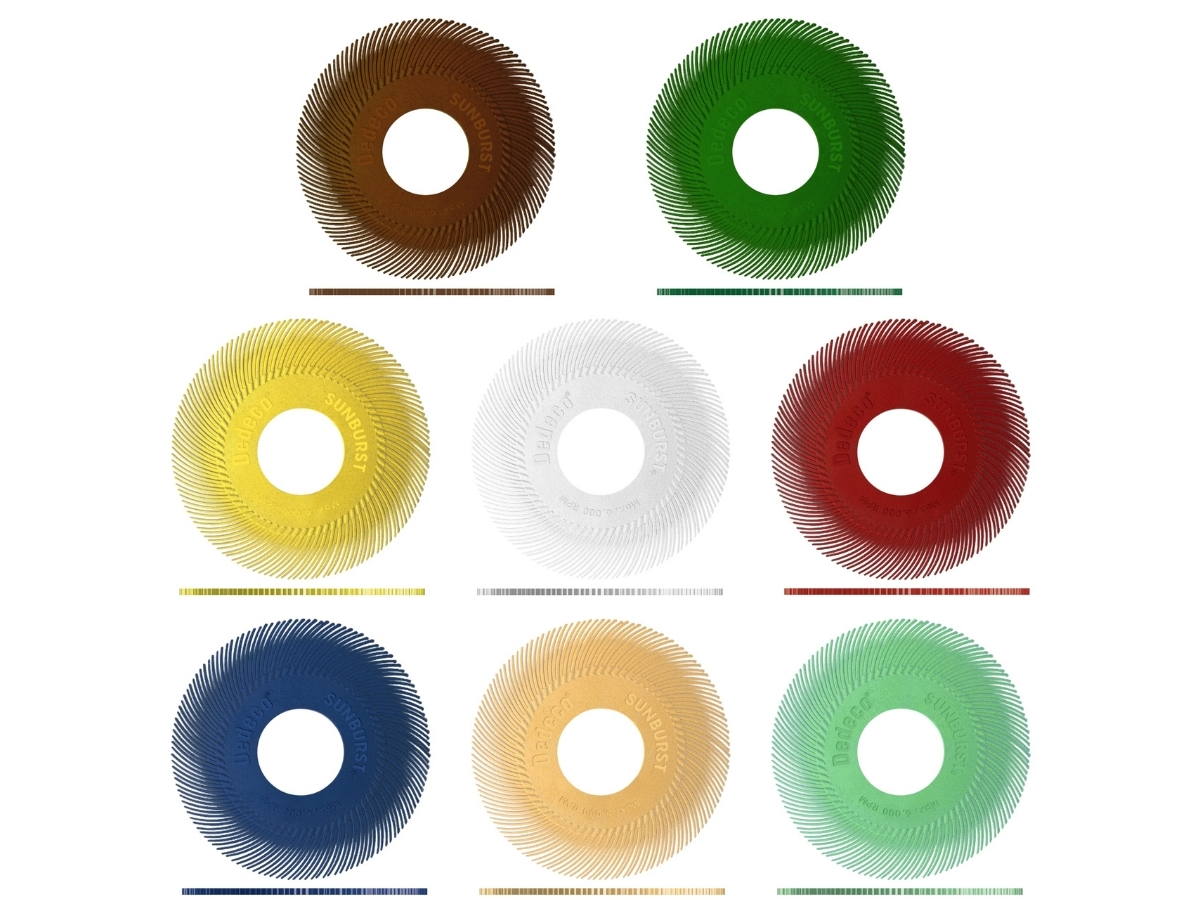

The loose format is one individual 6″ TC disc with a 2″ (50mm) centre hole. It is intended for replacing worn leaves or building a working wheel with an existing compatible mounting system.

Supplied as one loose radial bristle disc
Compatible flange and adapter system required
Mounting components are not included
Use six to eight loose discs of the same bristle type and grade to form one supported working wheel

Loose discs must not be mounted individually or directly onto an unsupported shaft, spindle or pigtail.

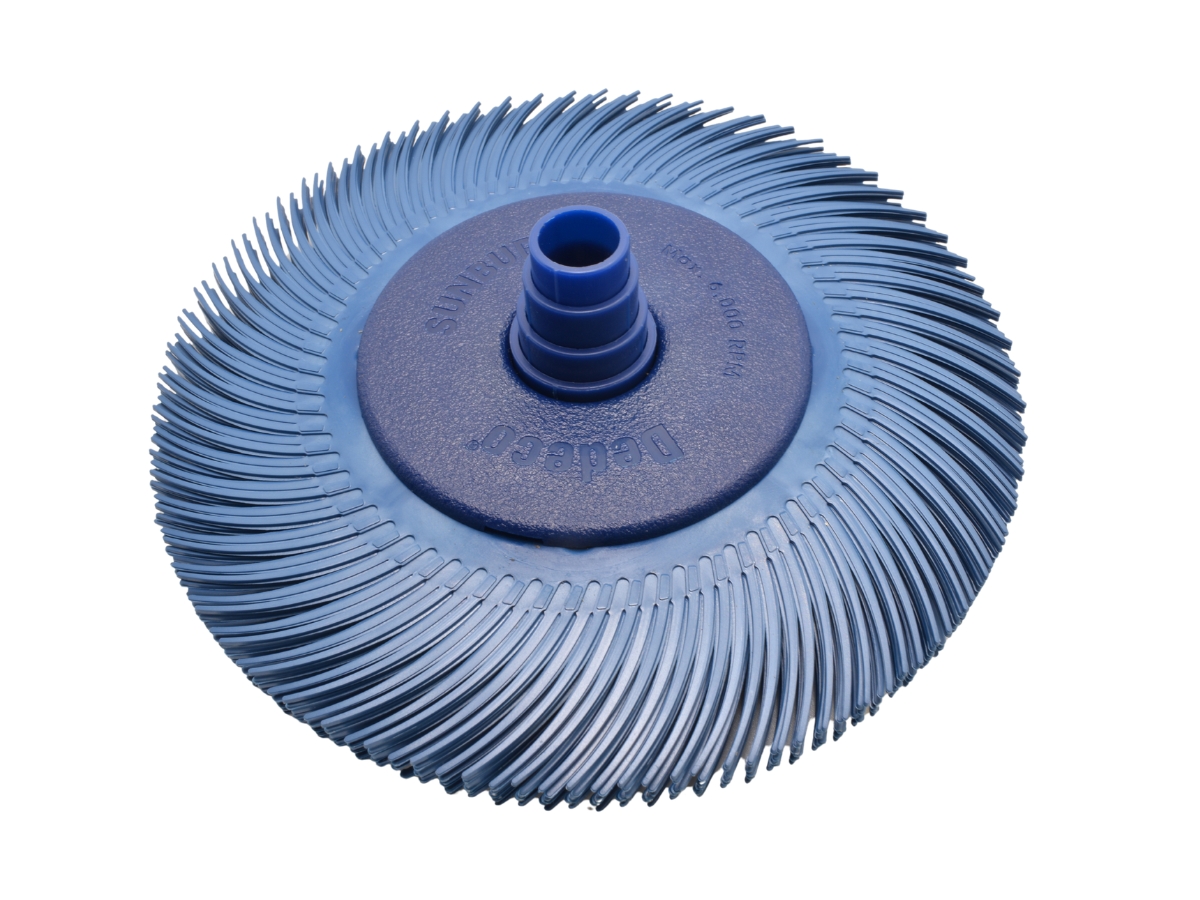

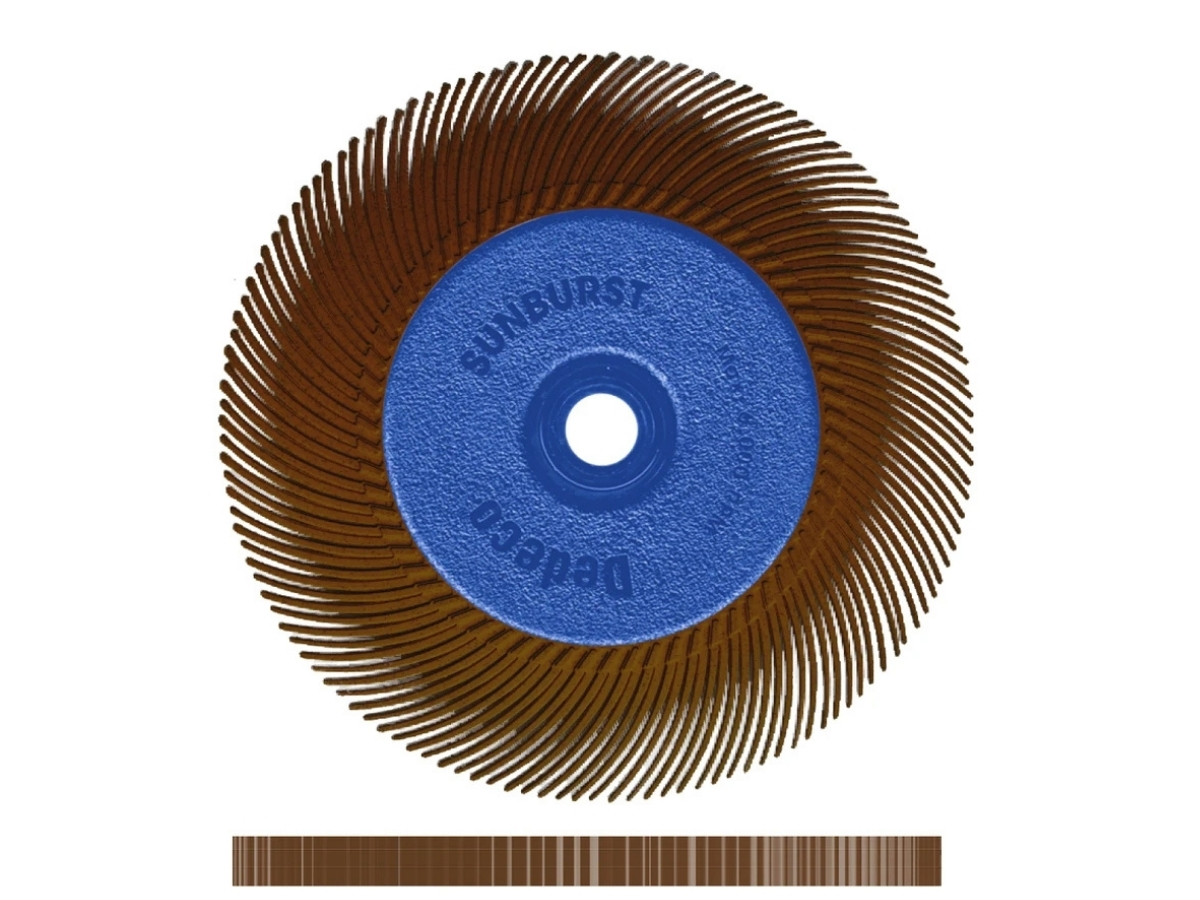

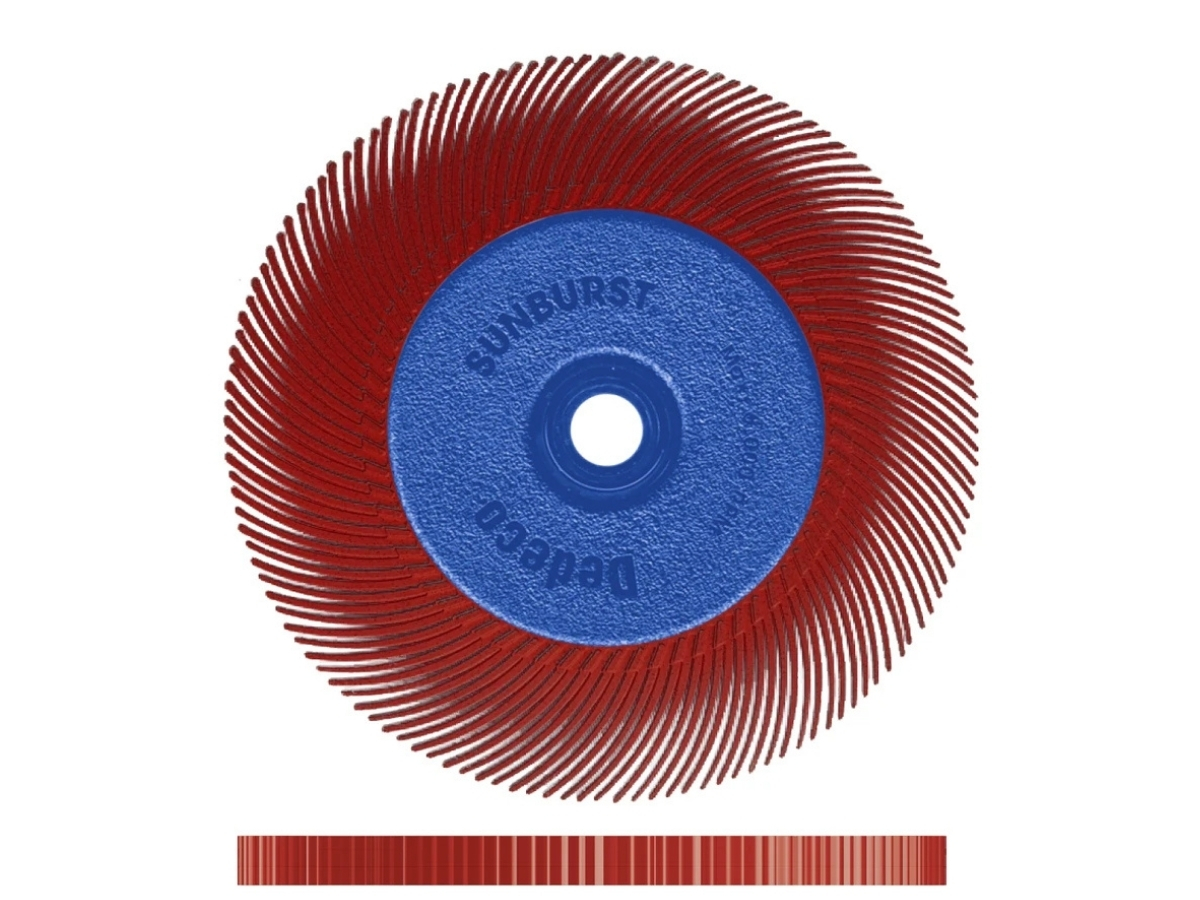

Eight-Lap Wheel Assembly

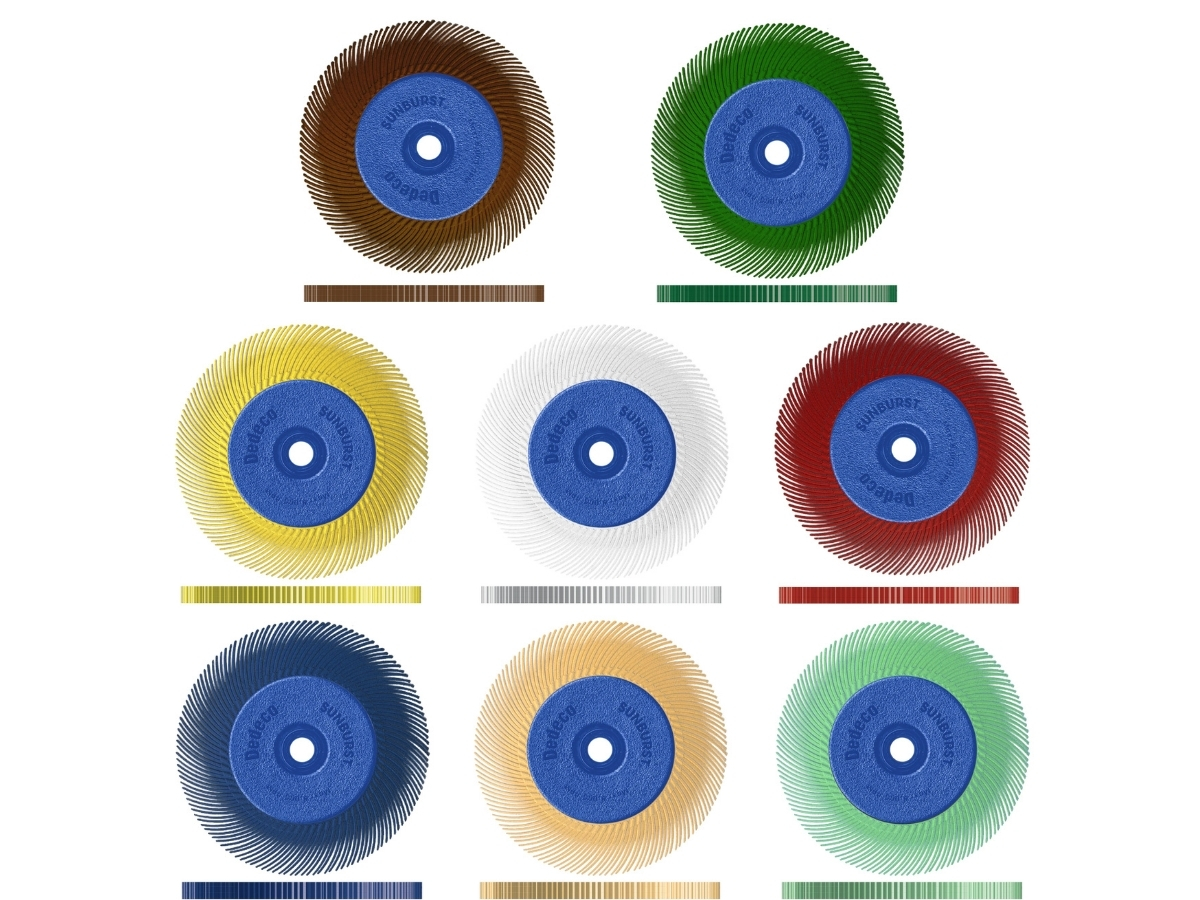

The assembled format contains eight matching TC discs pre-assembled into a wheel approximately 1/2″ (12.7mm) wide. It provides a complete option for users who do not want to build a wheel from loose leaves or do not already have a mounting system.

Eight matching TC laps in one grade
Reusable flange included
Telescopic adapter included
Suitable for 1/2″, 5/8″, 3/4″, 7/8″ and 1″ parallel shafts

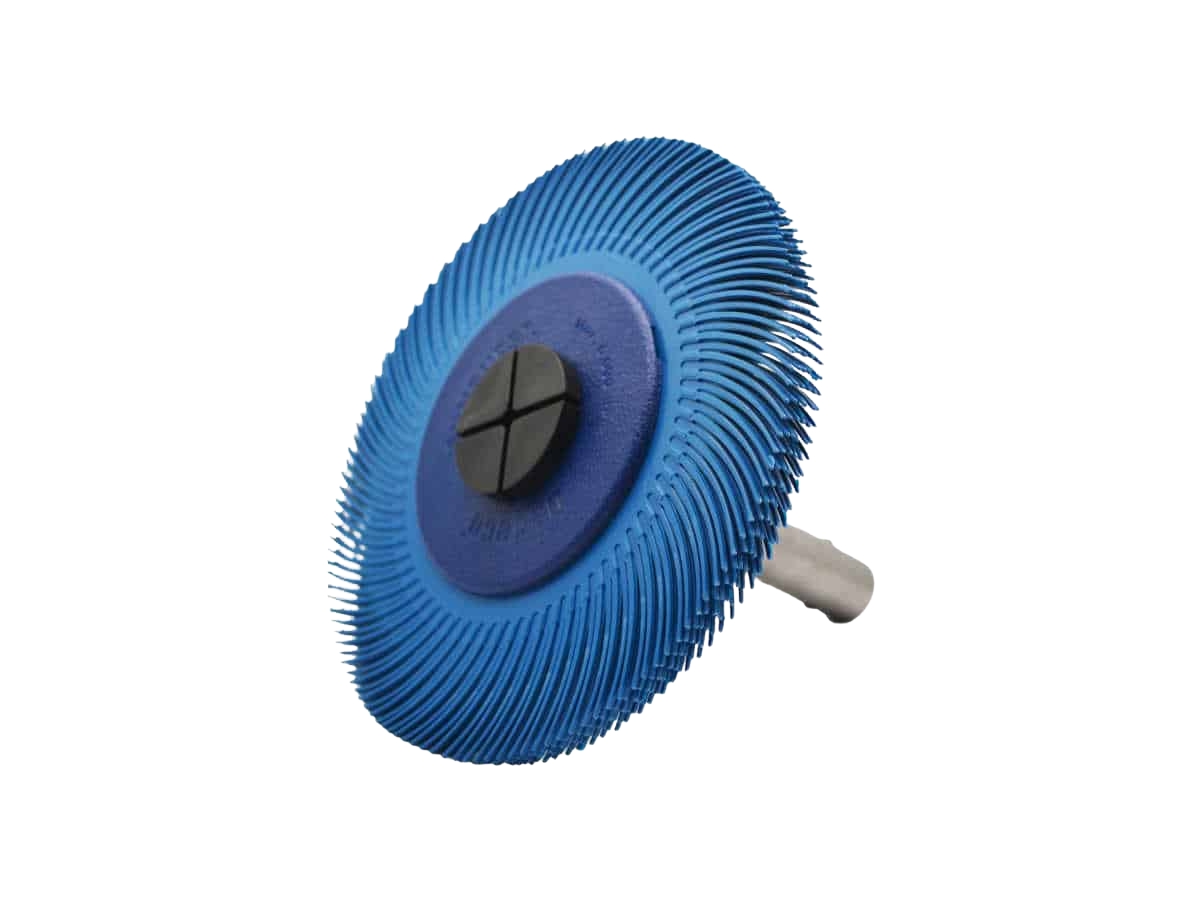

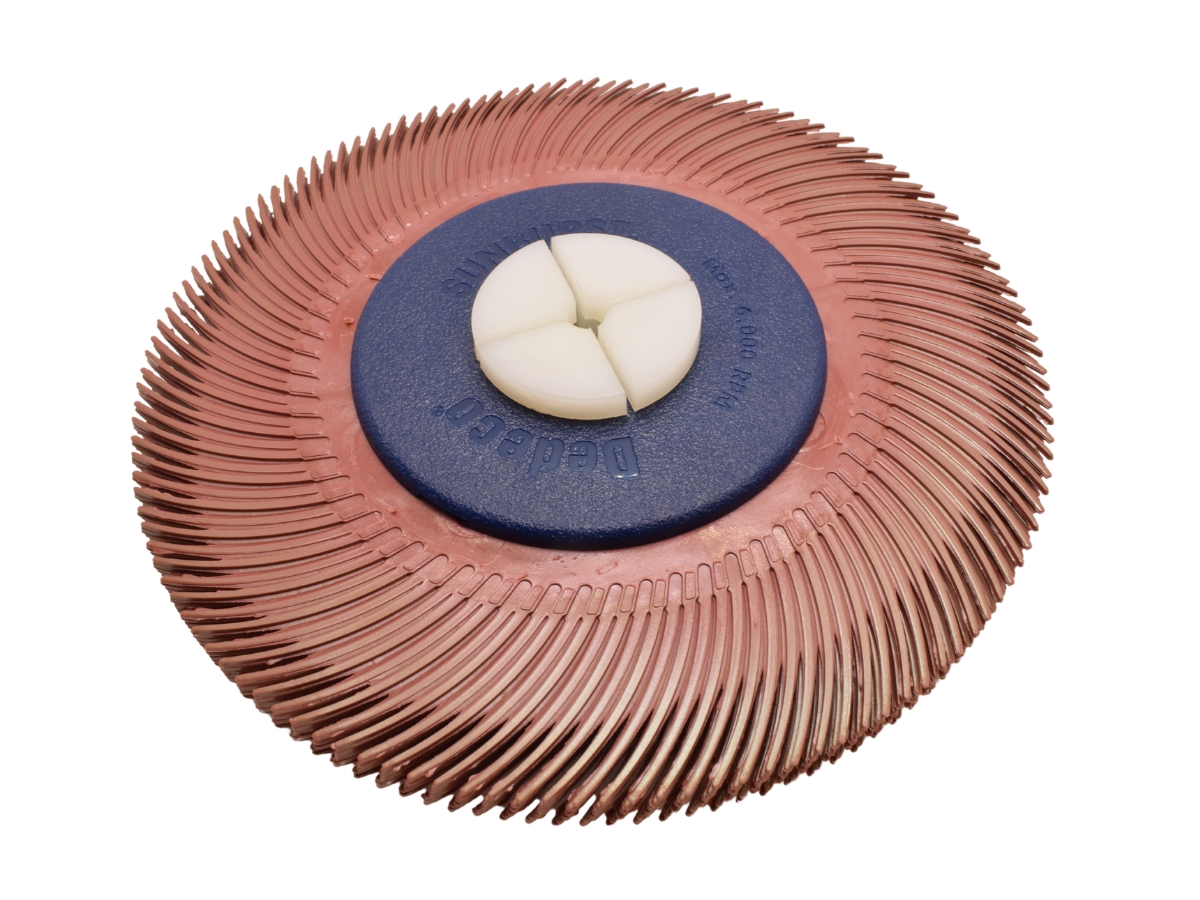

The assembly can also be adapted for a compatible polishing pigtail or tapered spindle by replacing the telescopic adapter with the appropriate tapered-spindle adapter while retaining the flange.

View the Large Radial Disc Flange & Adapter Mounting System

Grades & Selection

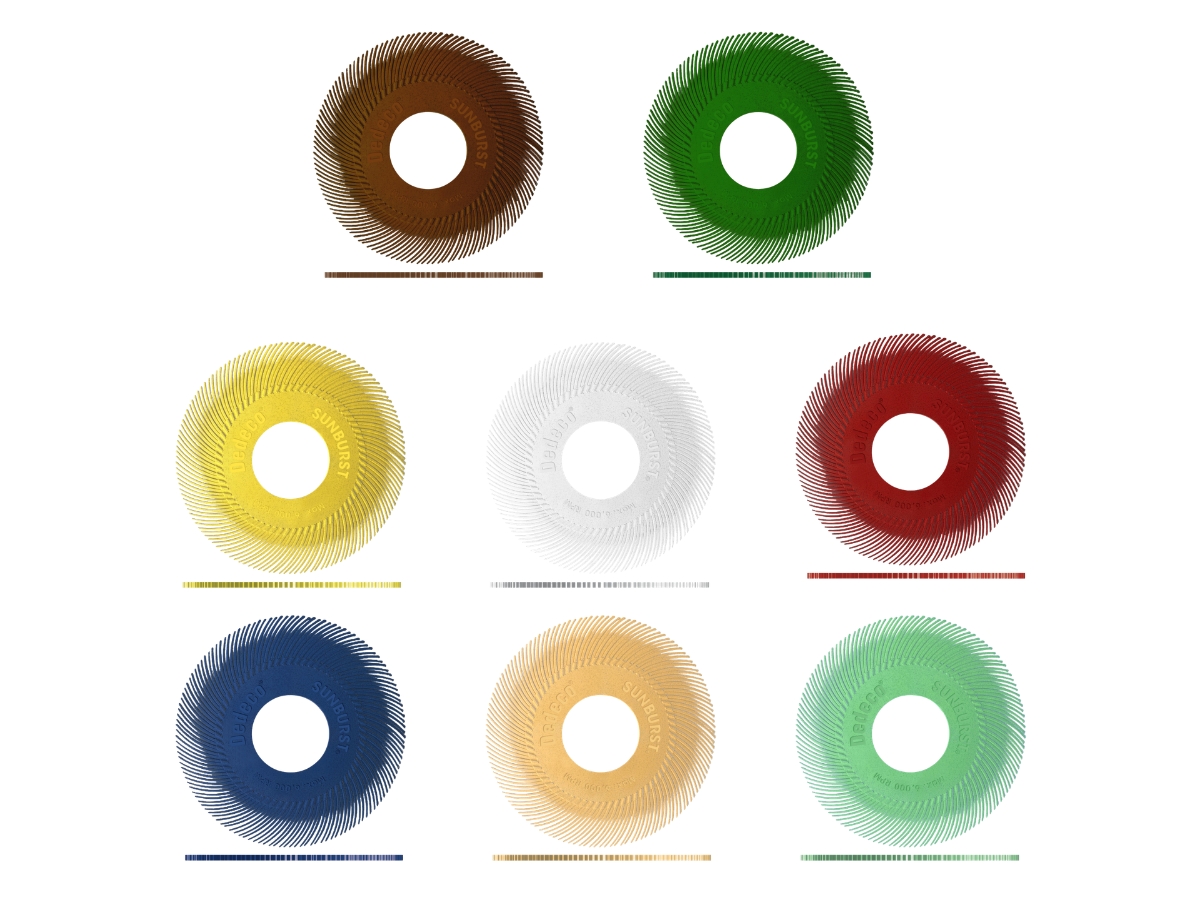

Colour	Grade	Typical Use
Brown (Ultra-Coarse)	36 Grit (Aluminium Oxide)	Aggressive cleaning and removal of heavy rust, scale, coatings and stubborn contamination

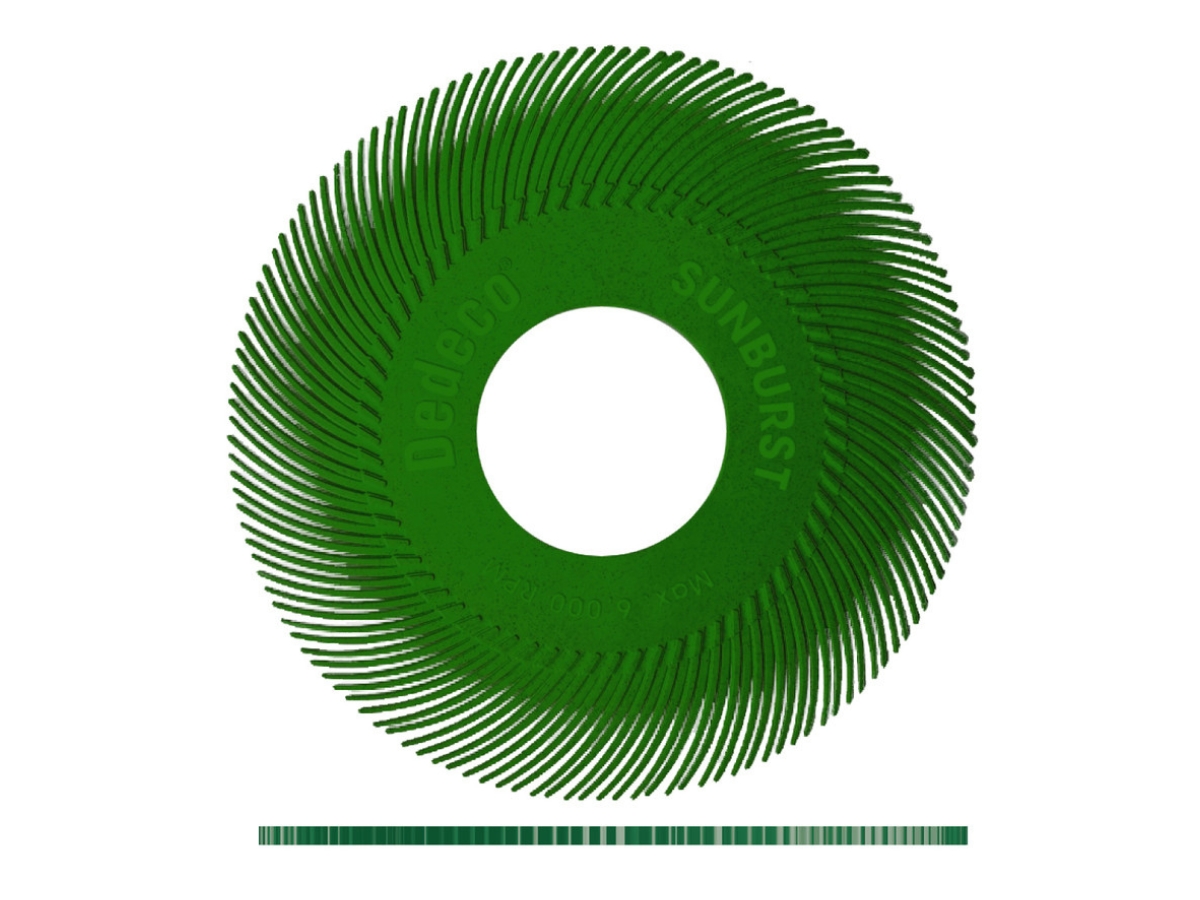

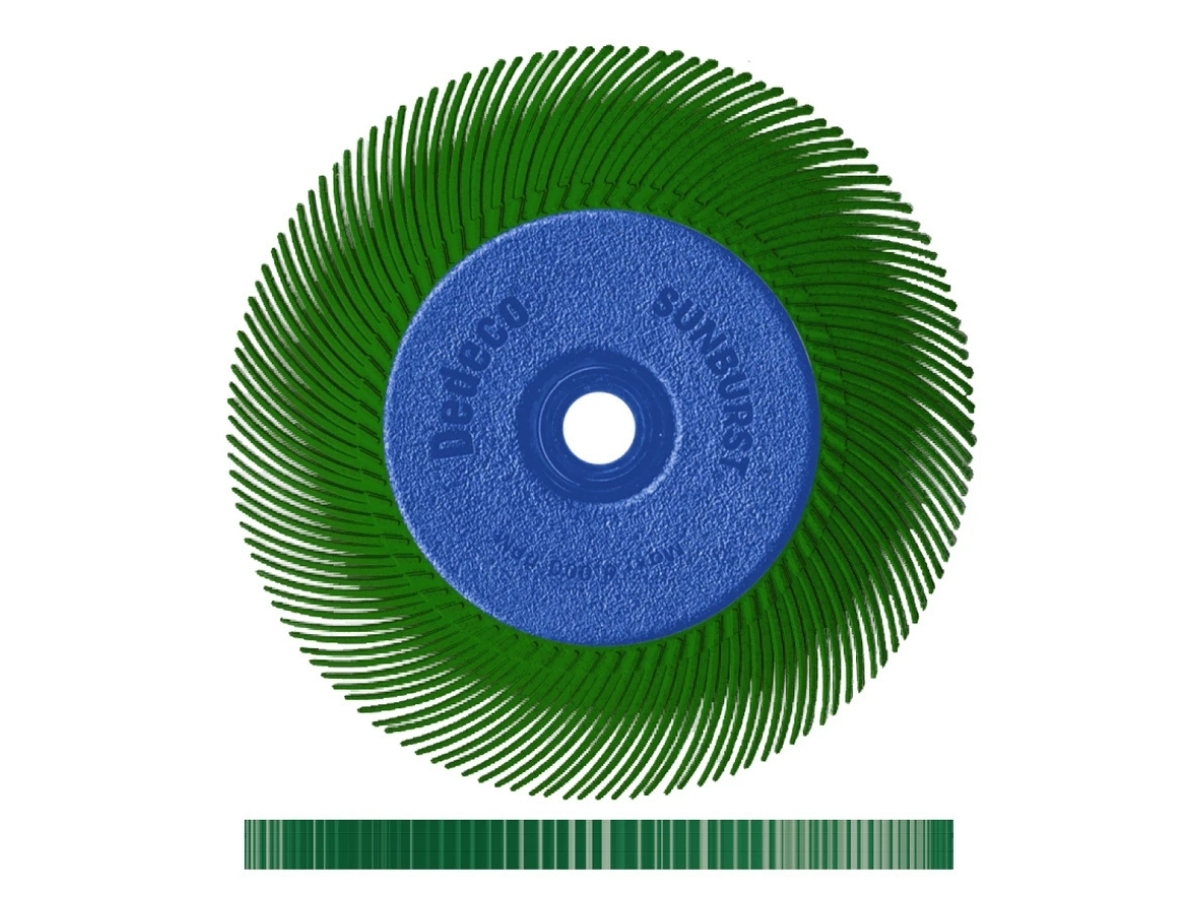

Dark Green (Extra-Coarse)	50 Grit (Aluminium Oxide)	Heavy cleaning, aggressive deburring, fire-scale removal and surface preparation

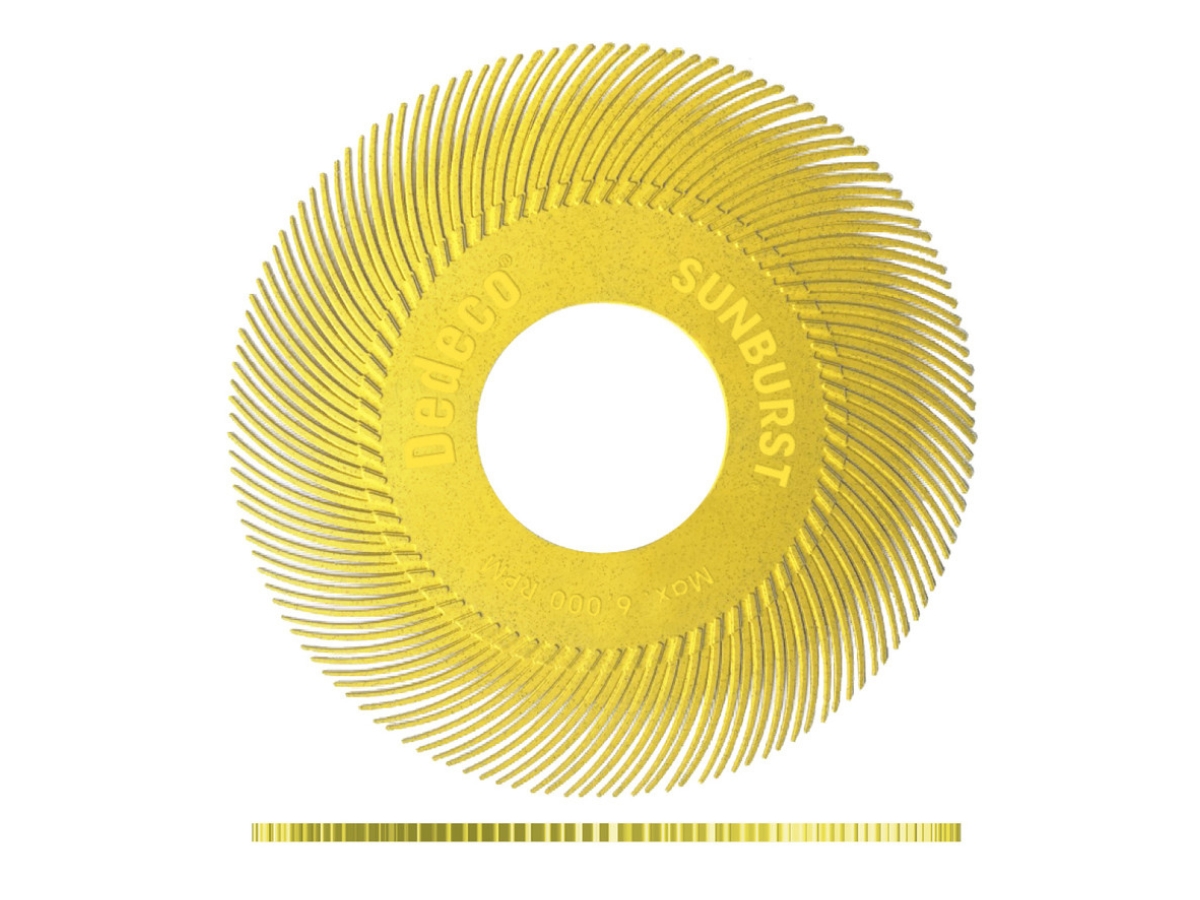

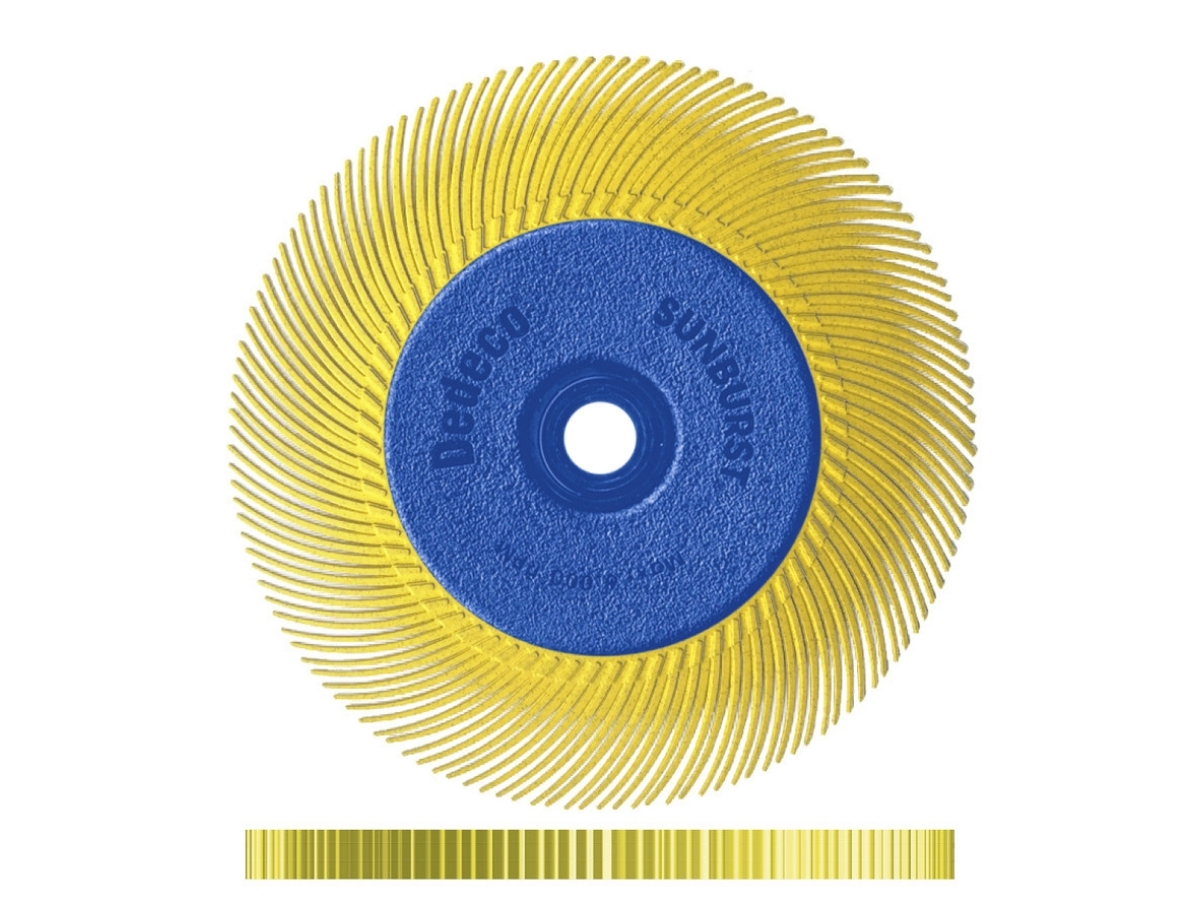

Yellow (Coarse)	80 Grit (Aluminium Oxide)	Cleaning, deburring and initial surface conditioning

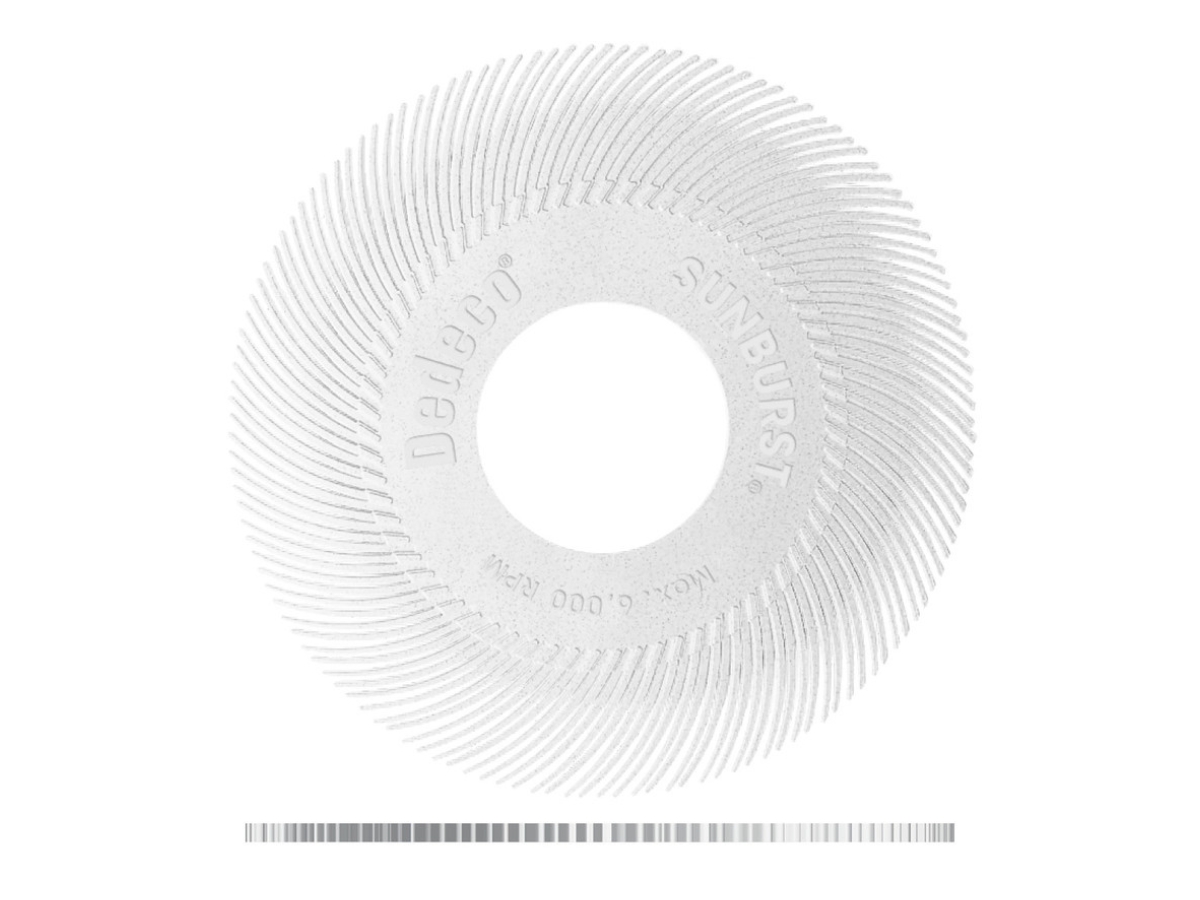

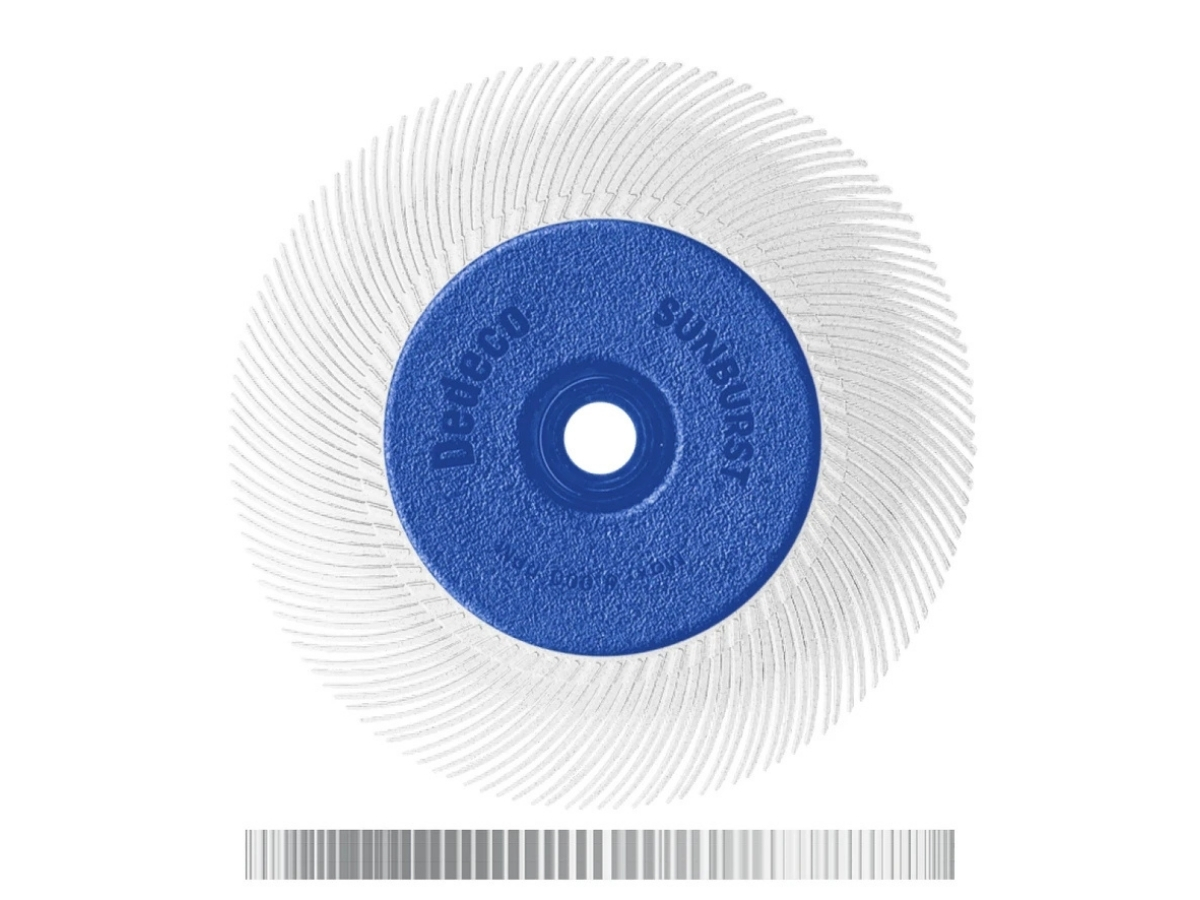

White (Medium)	120 Grit (Aluminium Oxide)	Light deburring, weld-discolouration clean-up and controlled blending

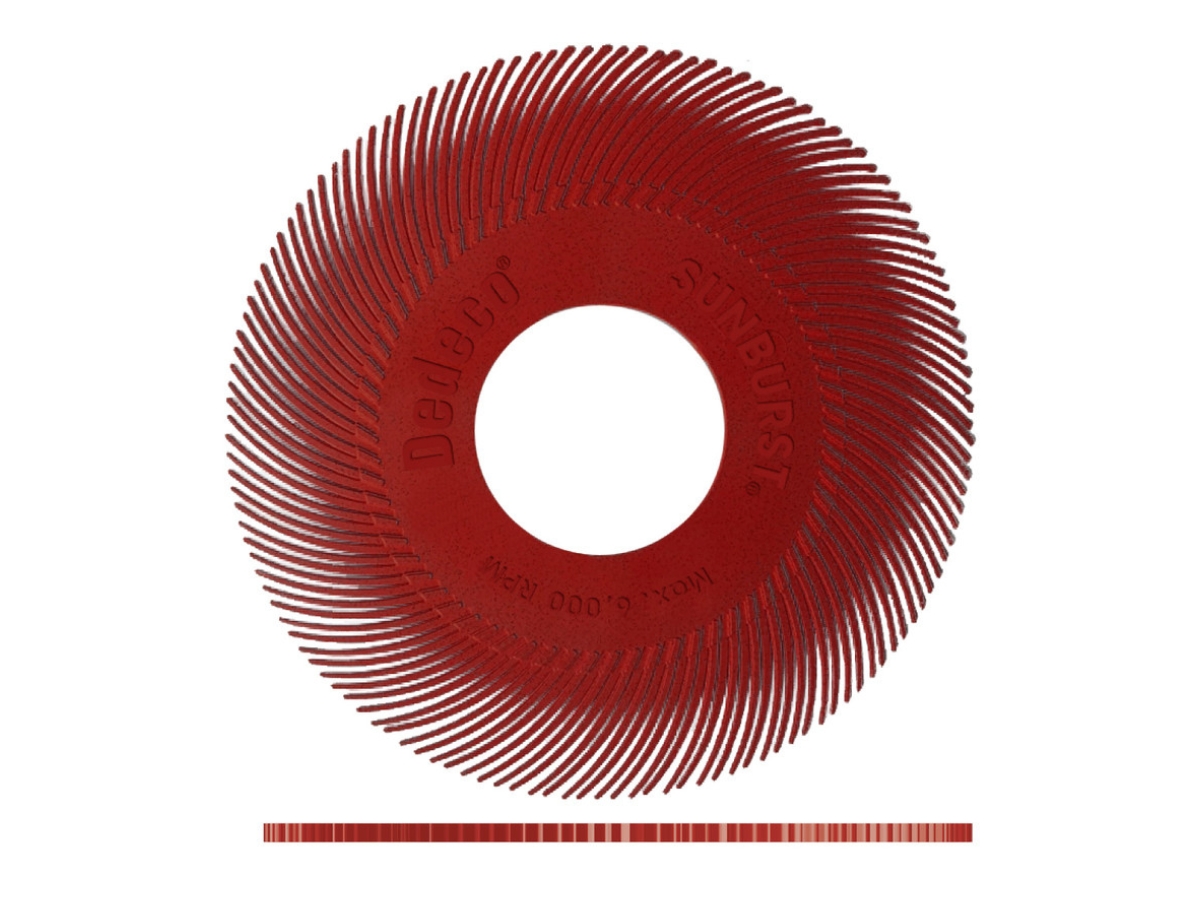

Red (Standard)	220 Grit (Aluminium Oxide)	Surface blending, scratch refinement and preparation for finer finishing stages

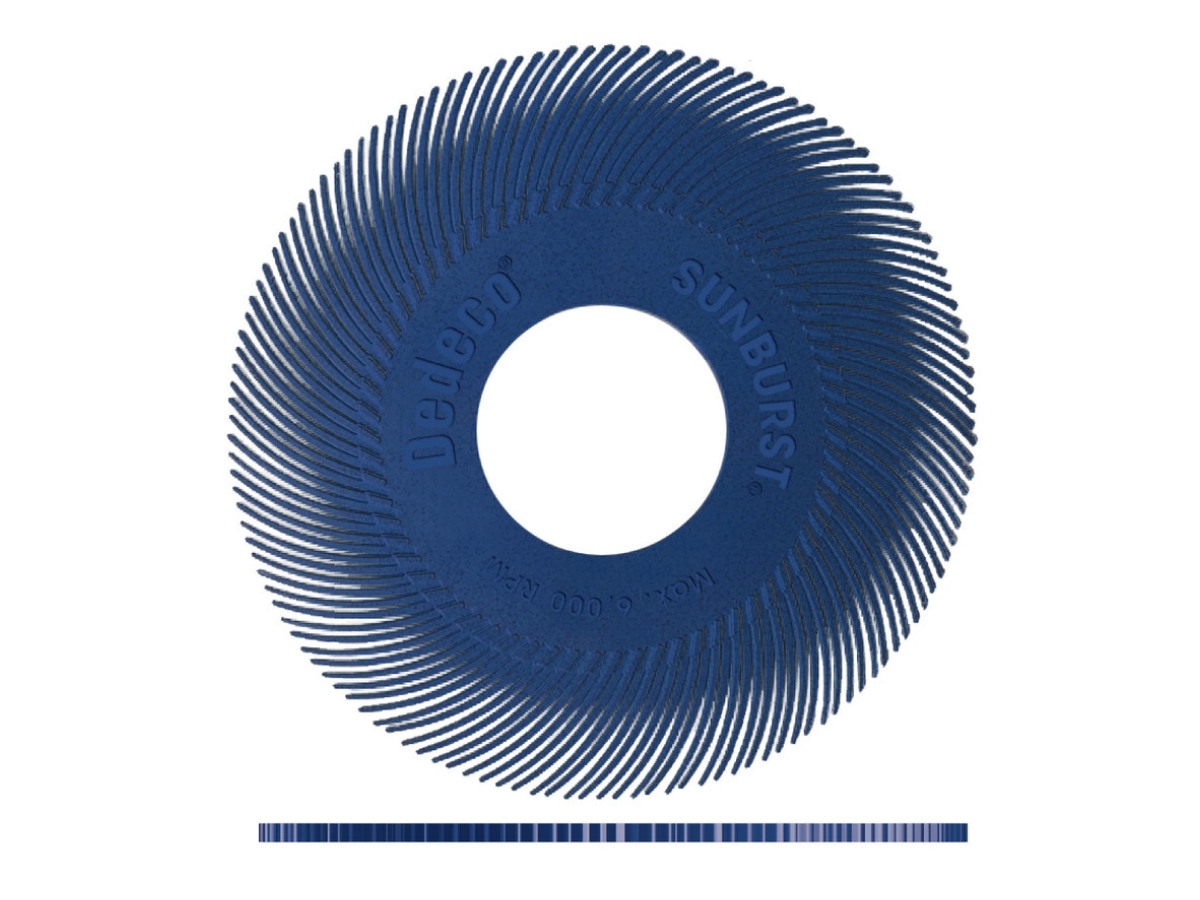

Blue (Fine)	400 Grit (Aluminium Oxide)	Fine finishing, satin finishing and surface smoothing

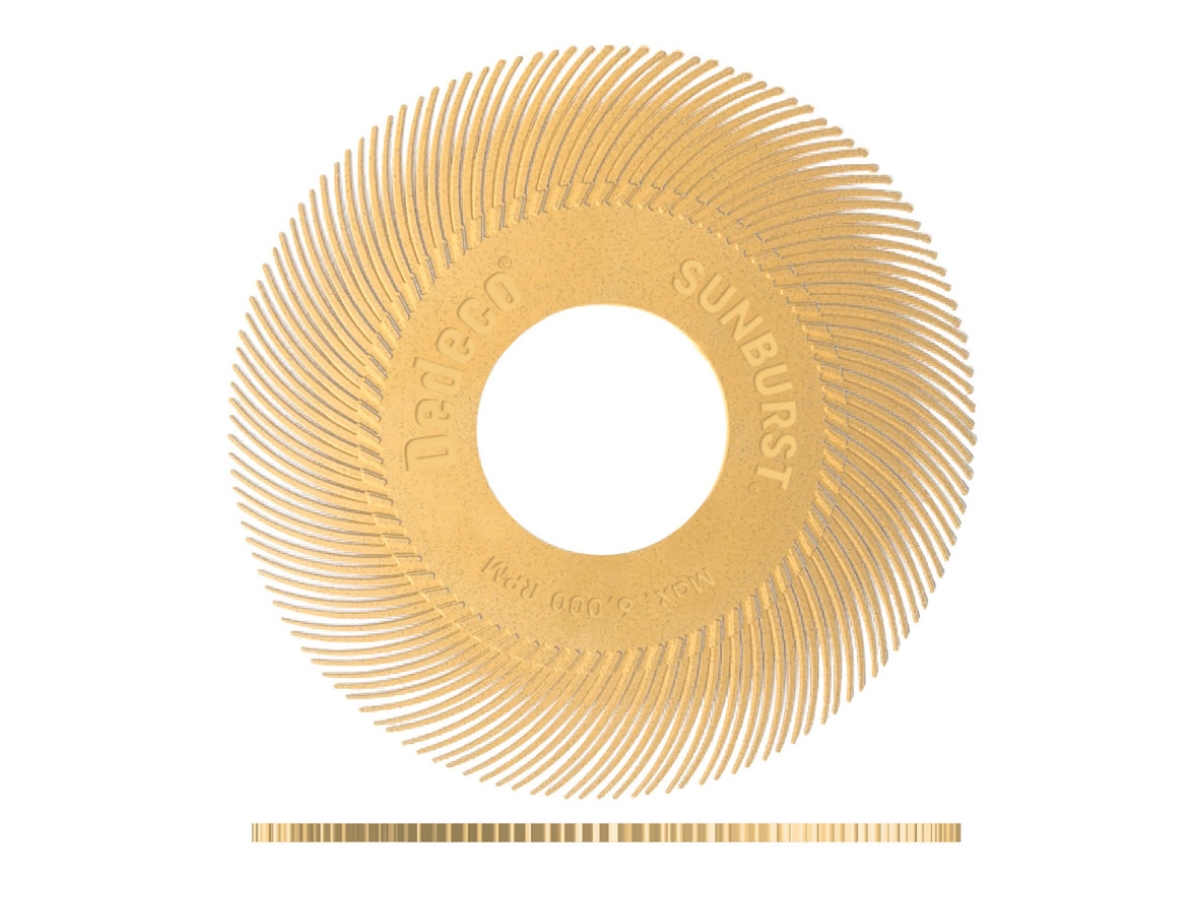

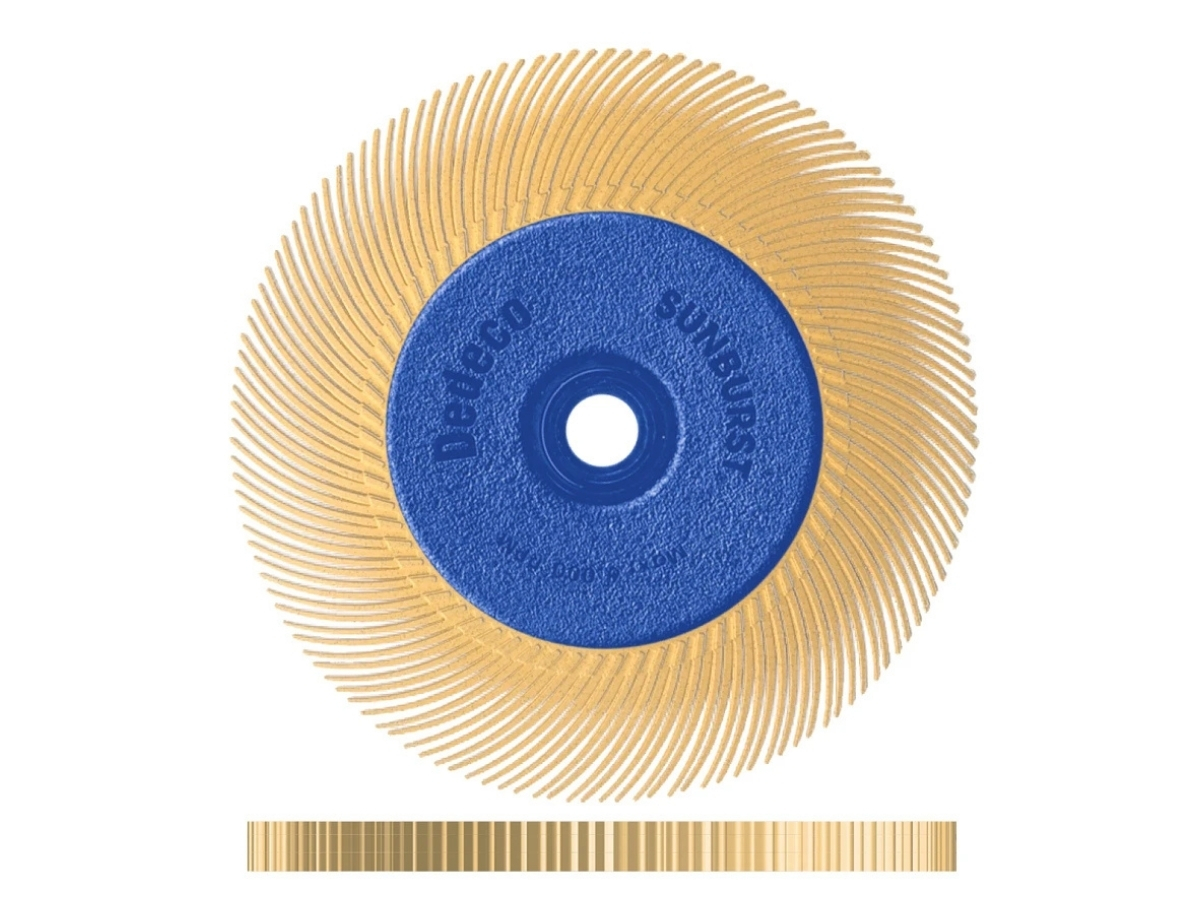

Peach (Extra-Fine)	6 Micron (Aluminium Oxide)	Fine pre-polishing and development of an initial lustre

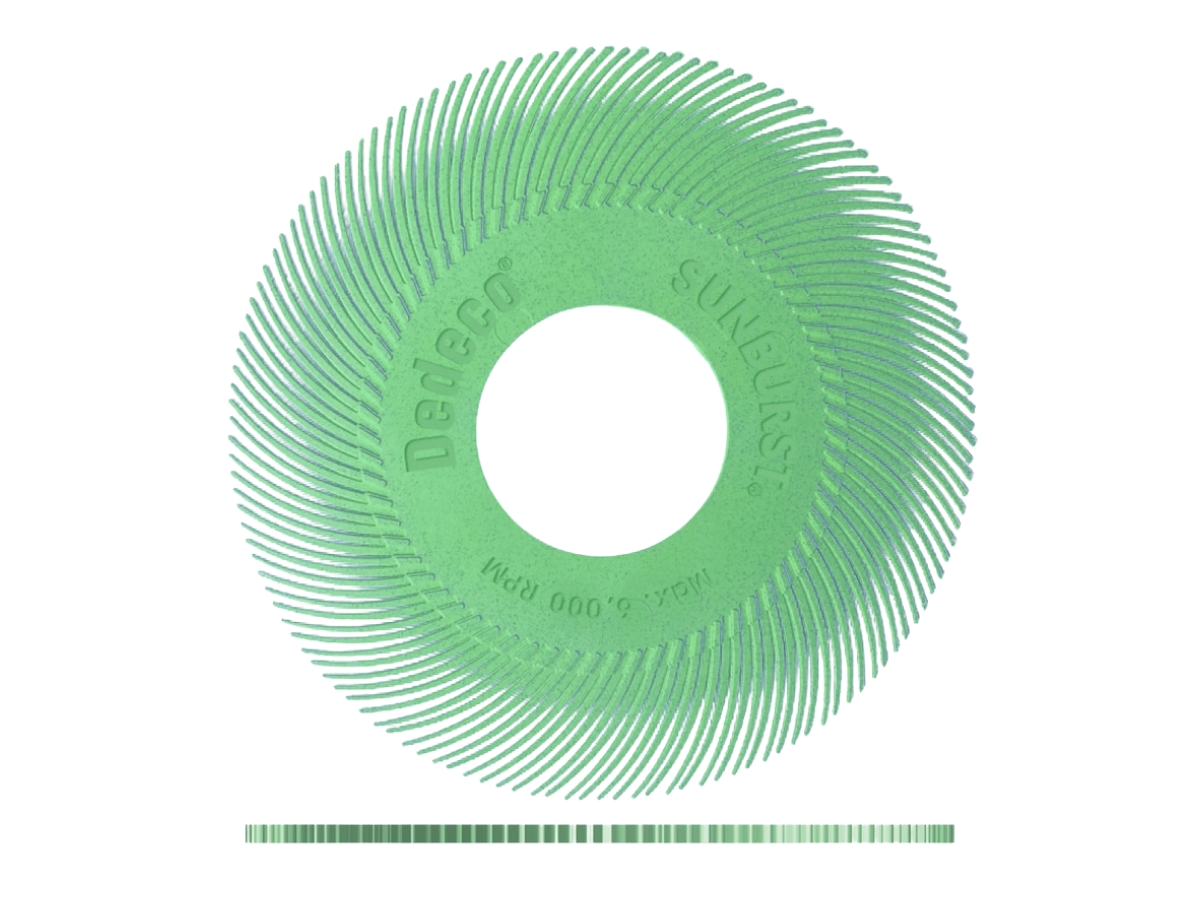

Light Green (Ultra-Fine)	1 Micron (Aluminium Oxide)	Final high-lustre and highly refined finishing

Availability note:
The variation selector shows the current availability for each format and grade. Some loose-disc and assembled-wheel combinations may be supplied to order.

For bulk orders, production usage or confirmed lead times, please contact us to discuss availability.

Operating & Safety Guidance

Recommended operating speed: 1,500–4,000 RPM
Maximum permitted speed: 6,000 RPM
Never exceed the lowest maximum speed stated for the disc, adapter or machine
TC bristles are single-directional; install every disc in the correct and consistent direction of rotation
Use the bristle tips with light, controlled pressure rather than forcing the wheel into the workpiece
Allow the bristles to follow the workpiece geometry without excessive side loading
Keep the workpiece moving to limit localised heat and uneven wear
Check the flange, adapter and shaft fit before starting the machine
Use suitable machine guarding and personal protective equipment
Use suitable flat or cupped side-support washers where required by the wheel and machine configuration

Product Specifications

Product range	Dedeco Sunburst
Nominal diameter	6″ (approximately 150mm)
Bristle profile	TC – standard curved and conformable (Type C)
Bristle characteristics	Thin, flexible and single-directional
Abrasive	Aluminium oxide
Available grades	36, 50, 80, 120, 220 and 400 grit, 6 micron and 1 micron
Supply formats	Single loose disc or complete eight-lap wheel assembly
Loose-disc centre hole	2″ (50mm)
Loose-disc mounting	Compatible flange and adapter system required; not included
Loose-disc working stack	Six to eight matching discs of the same bristle type and grade
Wheel assembly	Eight TC laps, approximately 1/2″ (12.7mm) wide
Assembly mounting	Reusable flange and telescopic adapter included
Assembly shaft compatibility	1/2″, 5/8″, 3/4″, 7/8″ and 1″ parallel shafts
Recommended speed	1,500–4,000 RPM
Maximum speed	6,000 RPM
Suitable equipment	Bench motors, polishing lathes and compatible low-speed finishing machines
Polishing compound required	No

Complete Your Radial Finishing Setup

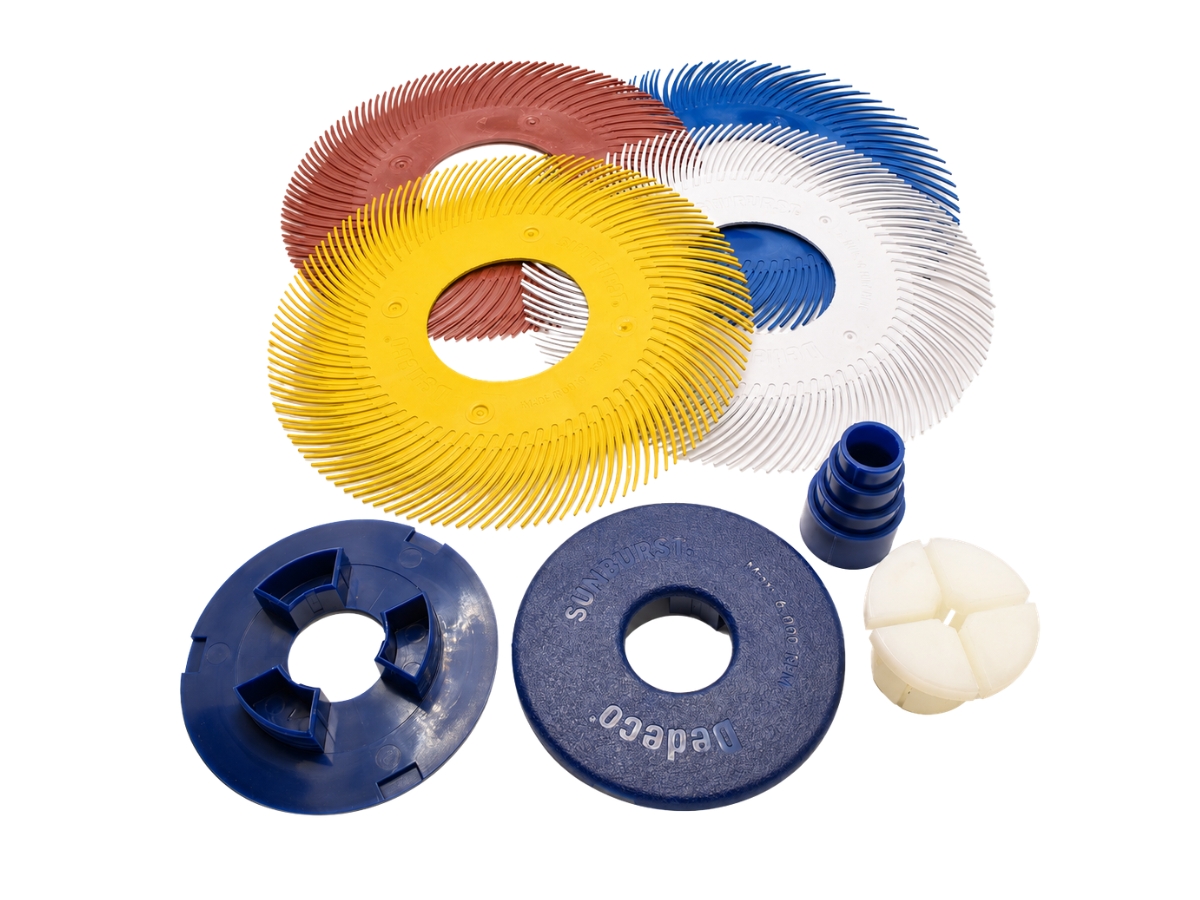

Mounting Loose 6-inch Discs

If you are purchasing loose discs and do not already have a mounting system, select the flange and adapter configuration that matches your machine.

Need Firmer, More Aggressive Contact?

Choose Dedeco Sunburst TA radial discs when thicker, angled bristles are preferable for aggressive cleaning, deburring and preparation across flatter or more accessible surfaces.

Browse The Full Range

Browse All Radial Bristle Discs

Browse All Large Radial Bristle Discs & Wheels

View All Dedeco Sunburst Discs

Weight	0.05 kg
Disc Size / Diameter	6" (150mm)
Arbor (Centre Hole)	2" (50mm)
Disc Type	Standard
Bristle Type	Curved – TC / Type C
Supply Format	Single Loose Disc (No Flange), 8-Lap Wheel Assembly with Flange
Grit / Grade	36 Grit – Ultra-Coarse (Brown), 50 Grit – Extra-Coarse (Dark Green), 80 Grit – Coarse (Yellow), 120 Grit – Medium (White), 220 Grit – Standard (Red), 400 Grit – Fine (Blue), 6 Micron – Extra-Fine (Peach), 1 Micron – Ultra-Fine (Light Green)
For use on	Metal, Wood, Plastic
Tool	Bench Motors, Large Polishing Lathes, Bench Polishers
